12. ANCOVA

Sharon Kinkenberg & Johnny van Doorn

University of Amsterdam

2023-10-06

ANCOVA

Analysis of covariance (ANCOVA) is a general linear model which blends ANOVA and regression. ANCOVA evaluates whether population means of a dependent variable (DV) are equal across levels of a categorical independent variable (IV) often called a treatment, while statistically controlling for the effects of other continuous variables that are not of primary interest, known as covariates (CV).

WIKIPEDIA

ANCOVA

Determine main effect while correcting for covariate

1 dependent variable
1 or more independent variables
1 or more covariates

A covariate is a variable that can be a confounding variable biasing your results. By adding a covariate, we reduce error/residual in the model.

Assumptions

Same as ANOVA
Independence of the covariate and treatment effect §13.4.1.
- No difference on ANOVA with covar and independent variable
- Matching experimental groups on the covariate
Homogeneity of regression slopes §13.4.2.
- Visual: scatterplot dep var * covar per condition
- Testing: interaction indep. var * covar

Independence of the covariate and treatment effect

Data example

We want to test the difference in national extraversion but want to also account for openness to experience.

Dependent variable: Extraversion
Independent variabele: Nationality
- Dutch
- German
- Belgian
Covariate: Openness to experience

Simulate data

# Simulate data
n <- 20
k <- 3
nationality       <- round(runif(n,1,k),0)
nationality <- factor(nationality)
levels(nationality) <- c("Dutch", "German", "Belgian")
mu.covar    <- 8
sigma.covar <- 1
openness       <- round(rnorm(n,mu.covar,sigma.covar),2)

# Create dummy variables
dummy.1 <- ifelse(nationality == "German", 1, 0)
dummy.2 <- ifelse(nationality == "Belgian", 1, 0)

# Set parameters
b.0 <- 15 # initial value for group 1
b.1 <- 3  # difference between group 1 and 2
b.2 <- 4  # difference between group 1 and 3
b.3 <- 3  # Weight for covariate

# Create error
error <- rnorm(n,0,1)

Define the model

\({outcome} = {model} + {error}\)

\({model} = {independent} + {covariate} = {nationality} + {openness}\)

Formal model

\(y = b_0 + b_1 {dummy}_1 + b_2 {dummy}_2 + b_3 covar\)

# Define model
outcome <- b.0 + b.1 * dummy.1 + b.2 * dummy.2 + b.3 * openness + error

Dummies

The data

Observed group means

aggregate(outcome ~ nationality, data, mean)

  nationality  outcome
1       Dutch 38.67000
2      German 42.16625
3     Belgian 43.79800

Model fit without covariate

What are the beta coefficients when we fit a model that only has “nationality” as a predictor variable?

fit.group <- lm(outcome ~ nationality, data); fit.group


Call:
lm(formula = outcome ~ nationality, data = data)

Coefficients:
       (Intercept)   nationalityGerman  nationalityBelgian
            38.670               3.496               5.128

fit.group$coefficients[2:3] + fit.group$coefficients[1]

 nationalityGerman nationalityBelgian
          42.16625           43.79800

\({Dutch} = 38.67 \> {German} = 42.16625 \> {Belgian} = 43.798\)

Model fit with only covar

What are the beta coefficients when we fit a model that only has the covariate as predictor variable?

fit.covar <- lm(outcome ~ openness, data)
fit.covar


Call:
lm(formula = outcome ~ openness, data = data)

Coefficients:
(Intercept)     openness
     15.667        3.185

Model fit with all predictor variables (factor + covariate)

fit <- lm(outcome ~  nationality + openness, data); fit


Call:
lm(formula = outcome ~ nationality + openness, data = data)

Coefficients:
       (Intercept)   nationalityGerman  nationalityBelgian            openness
            15.965               2.769               4.181               2.881

fit$coefficients[2:3] + fit$coefficients[1]

 nationalityGerman nationalityBelgian
          18.73401           20.14609

\({Dutch} = 15.96 \> {German} = 18.73 \> {Belgian} = 20.14\)

So what do we predict for each participant??

For a German with a score of 8 on Openness:

fit <- lm(outcome ~ nationality + openness, data); fit$coefficients

       (Intercept)  nationalityGerman nationalityBelgian           openness
         15.964661           2.769346           4.181430           2.880866

unname(fit$coefficients[1] + 1 * fit$coefficients[2] + 0 * fit$coefficients[3] +
  8 * fit$coefficients[4])

[1] 41.78093

How about a Belgian with 6 Openness?

Total variance

What is the total variance?

\({MS}_{total} = s^2_{outcome} = \frac{{SS}_{outcome}}{{df}_{outcome}}\)

ms.t <- var(data$outcome); ms.t

[1] 11.97756

ss.t <- var(data$outcome) * (length(data$outcome) - 1); ss.t

[1] 227.5737

The data

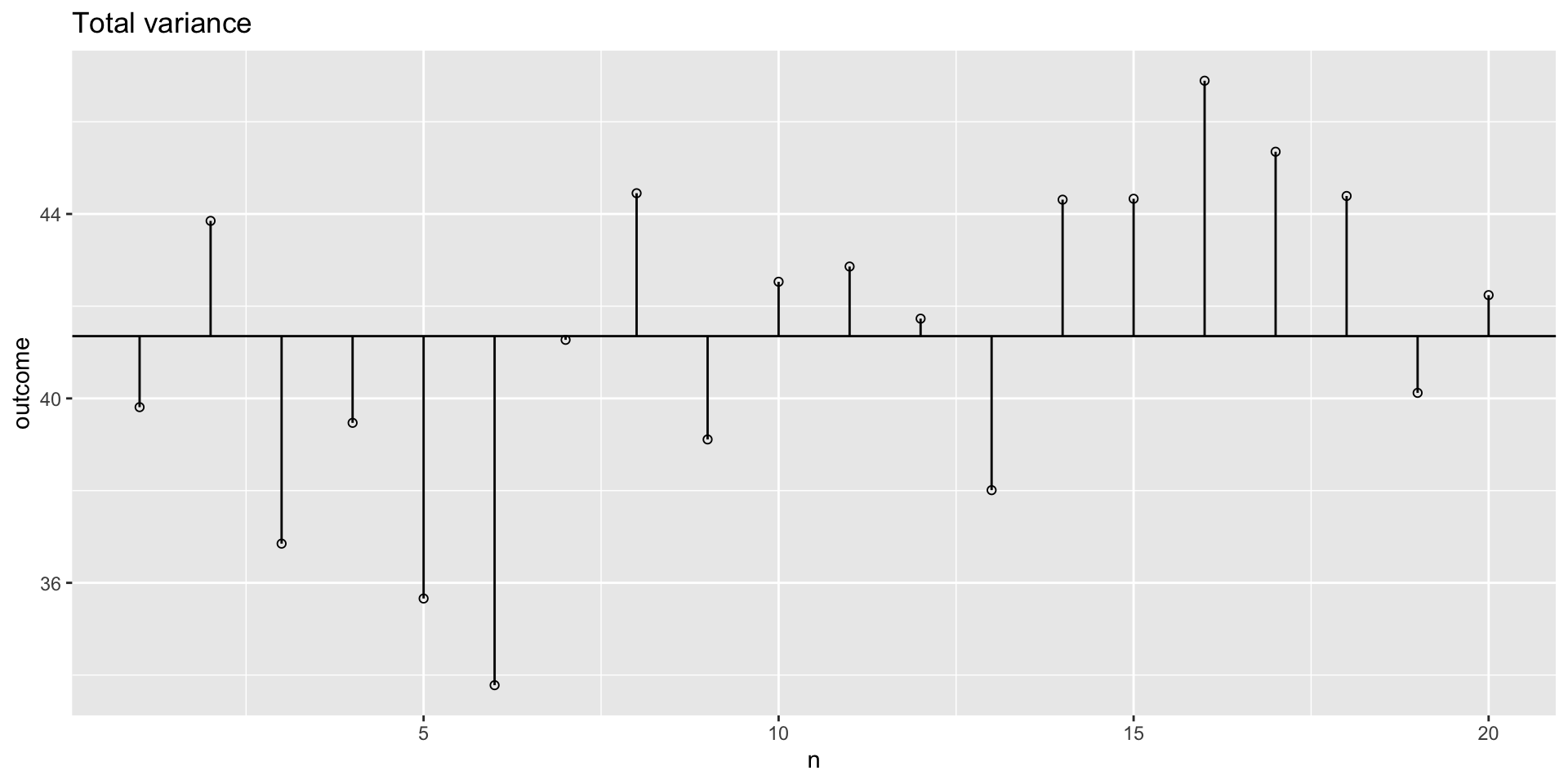

Total variance visual

Model variance group

The model variance consists of two parts. One for the independent variable and one for the covariate. Lets first look at the independent variable.

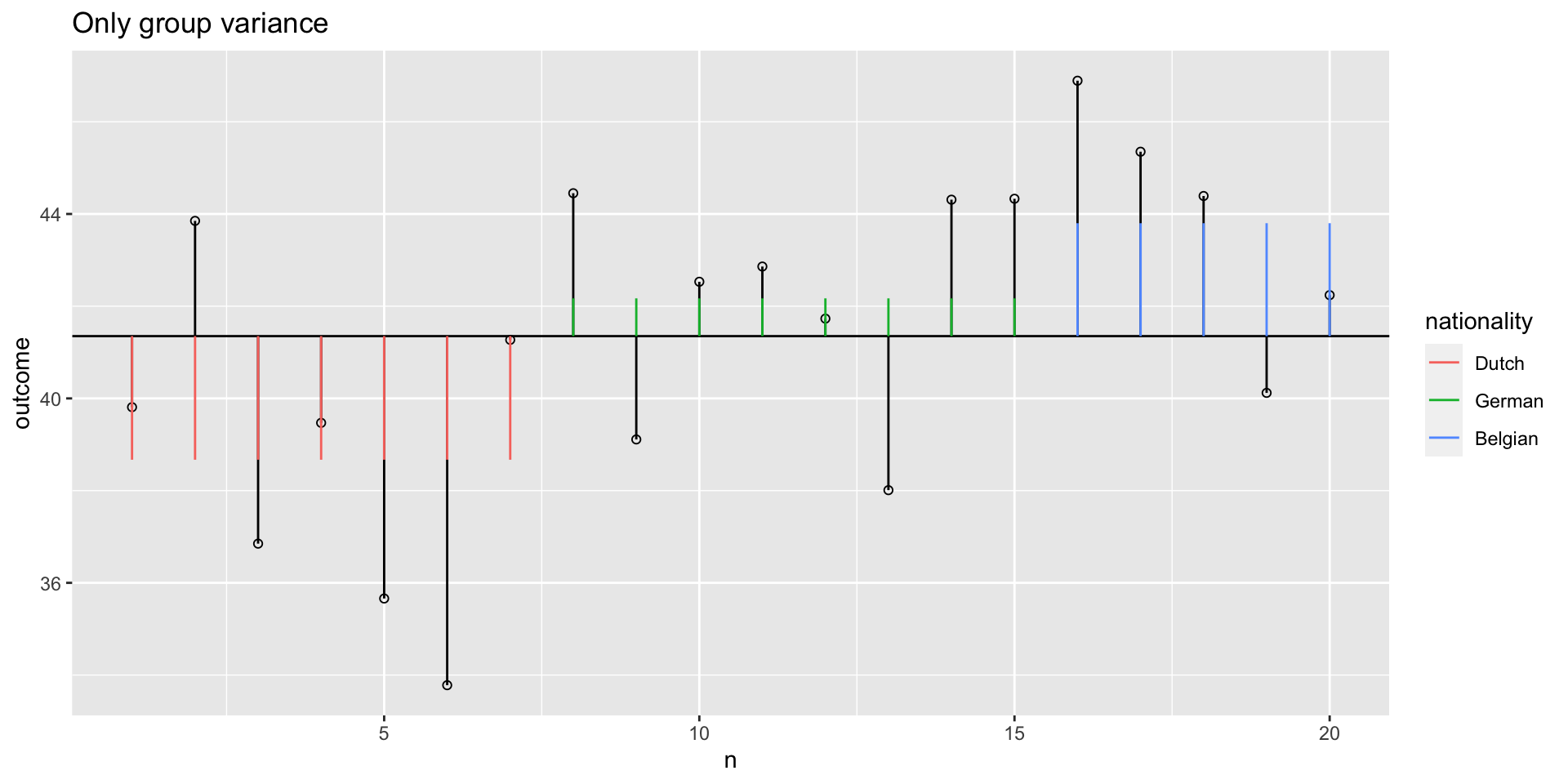

Model variance group visual

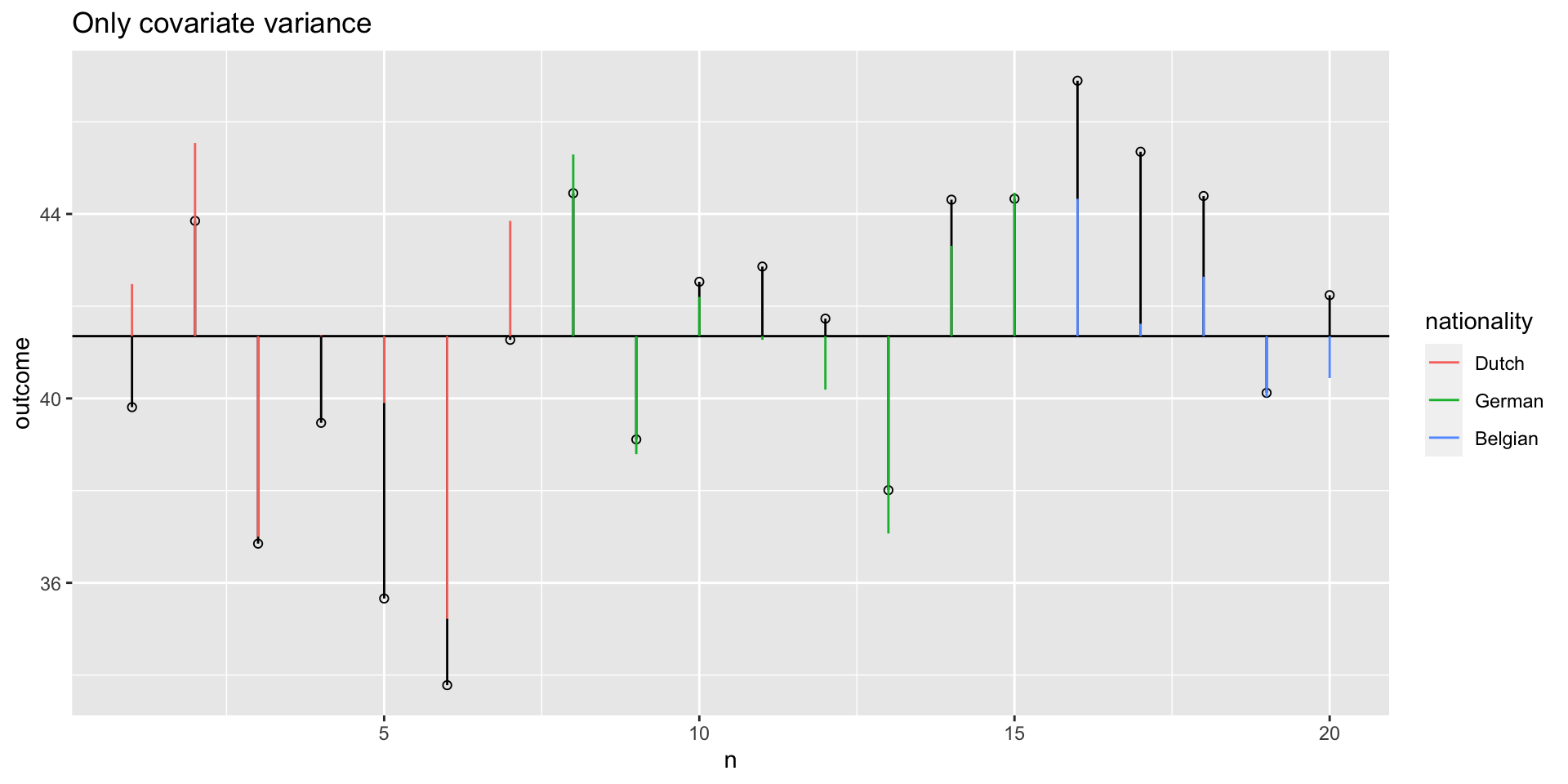

Model variance covariate visual

Model variance group and covariate

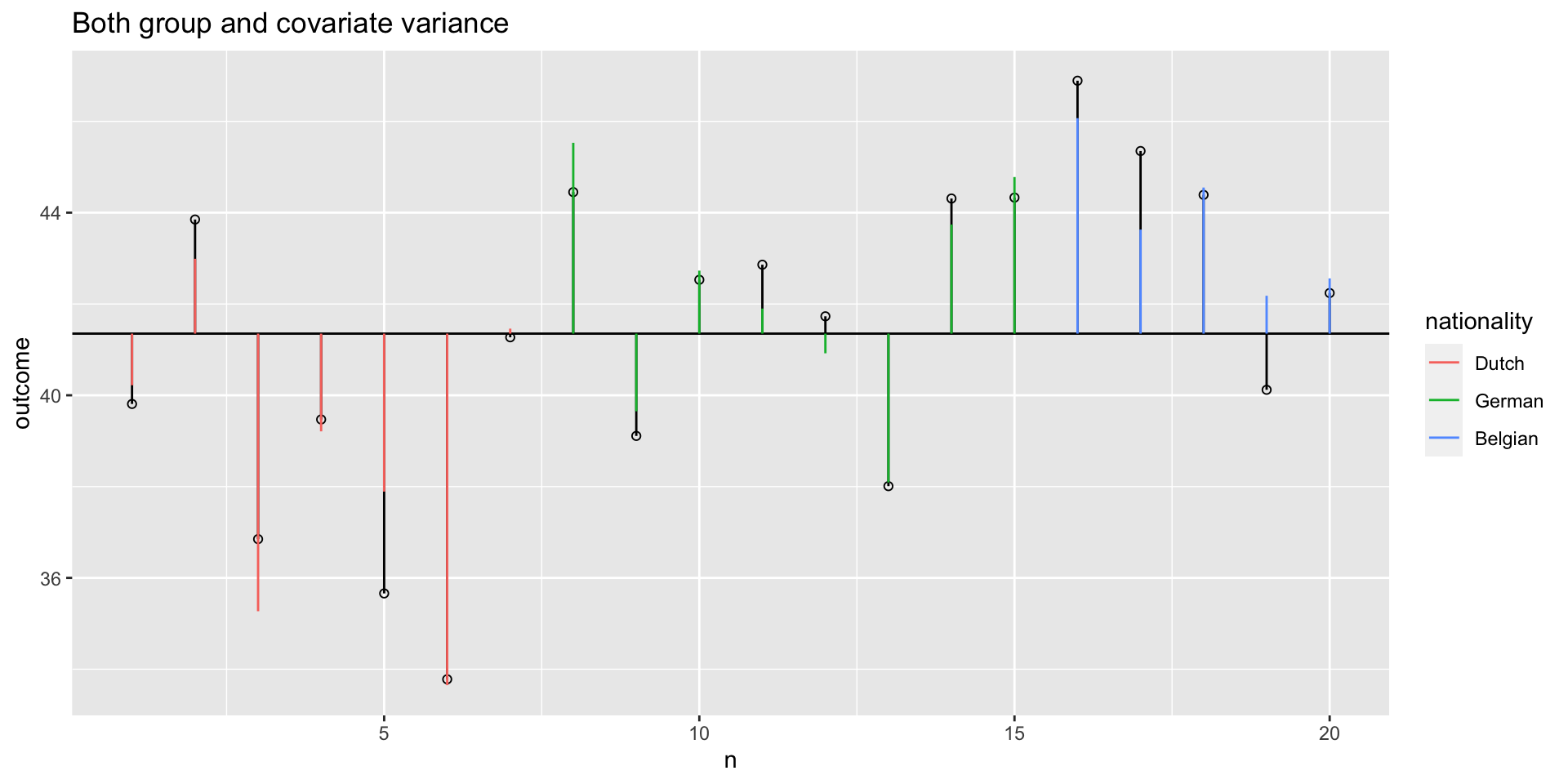

Model variance group and covariate visual

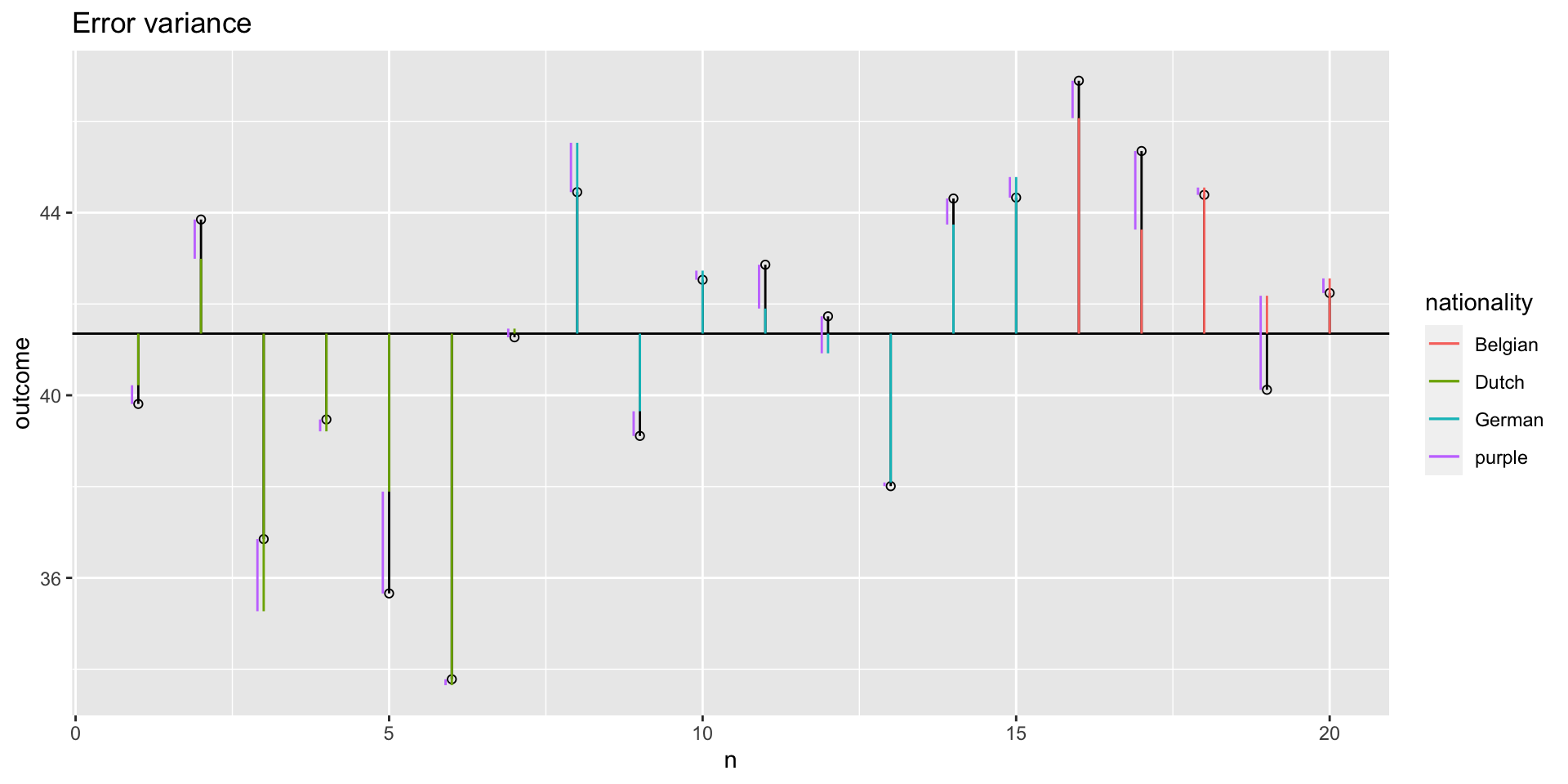

Error variance with covariate

Sums of squares

SS.model <- with(data, sum((model - grand.mean)^2))
SS.error <- with(data, sum((outcome - model)^2))

# Sums of squares for individual effects
SS.model.group <- with(data, sum((model.group - grand.mean)^2))
SS.model.covar <- with(data, sum((model.covar - grand.mean)^2))

SS.covar <- SS.model - SS.model.group; SS.covar ## SS.covar corrected for group

[1] 121.8463

SS.group <- SS.model - SS.model.covar; SS.group ## SS.group corrected for covar

[1] 54.65778

F-ratio

\(F = \frac{{MS}_{model}}{{MS}_{error}} = \frac{{SIGNAL}}{{NOISE}}\)

n <- 20
k <- 3
df.model <- k - 1
df.error <- n - k - 1

MS.model <- SS.group / df.model
MS.error <- SS.error / df.error

fStat <- MS.model / MS.error
fStat

[1] 21.74406

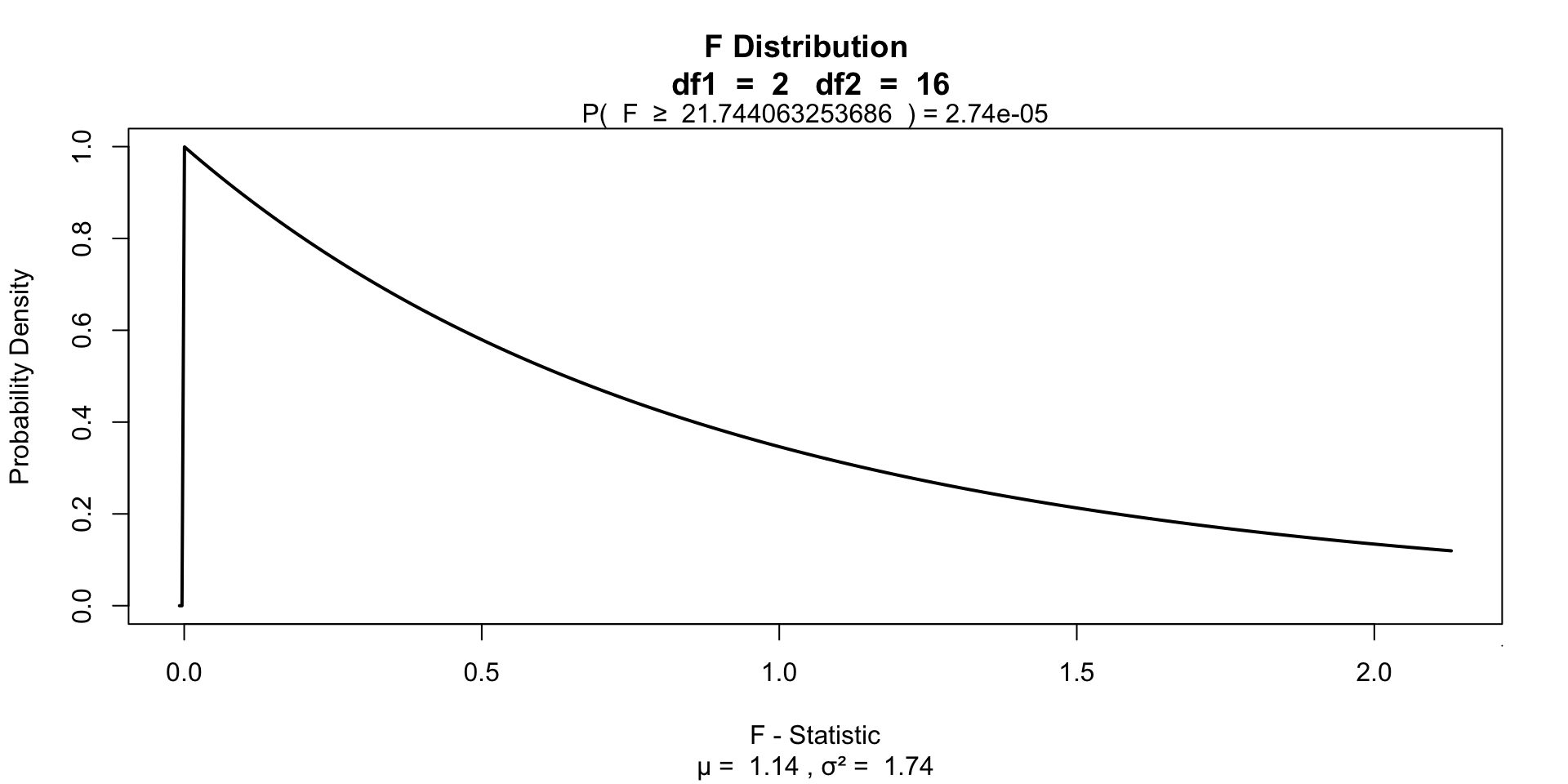

\(P\)-value

library("visualize")
visualize.f(fStat, df.model, df.error, section = "upper")

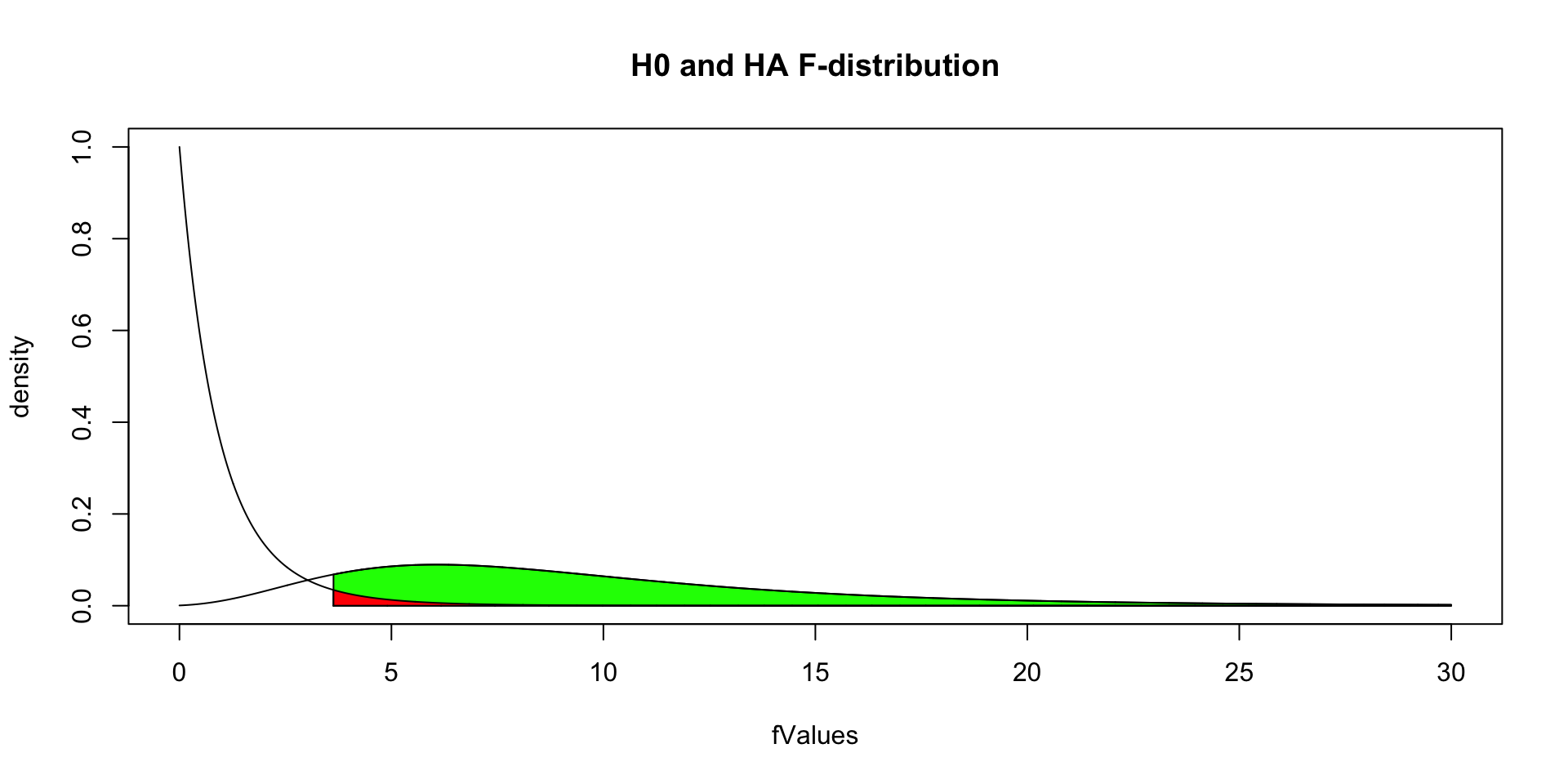

Alpha & Power

Power becomes quite abstract when we increase the complexity (i.e., number of predictors) of our models. We can make an F-distribution that symbolizes the alternative distribution by shifting the distribution more to the right (although the interpretability becomes pretty murky..) ::: {.cell} ::: {.cell-output-display} ::: :::

Adjusted/marginal means

Marginal means are estimated group means, while keeping the covariate equal across the groups

These are then the means that are used for follow-up tests, such as contrasts and post hoc tests

See also this blogpost I wrote a while ago

Adjusted/marginal means

# Add dummy variables
data$dummy.1 <- ifelse(data$nationality == "German", 1, 0)
data$dummy.2 <- ifelse(data$nationality == "Belgian", 1, 0)

# b coefficients
b.cov <- fit$coefficients["openness"];          b.int = fit$coefficients["(Intercept)"]
b.2   <- fit$coefficients["nationalityGerman"]; b.3   = fit$coefficients["nationalityBelgian"]

# Adjustment factor for the means of the independent variable
data$mean.adj <- with(data, b.int + b.cov * mean(openness) + b.2 * dummy.1 + b.3 * dummy.2)

aggregate(mean.adj ~ nationality, data, mean)

  nationality mean.adj
1       Dutch 39.19740
2      German 41.96675
3     Belgian 43.37883

aggregate(outcome ~ nationality, data, mean)

  nationality  outcome
1       Dutch 38.67000
2      German 42.16625
3     Belgian 43.79800
