15. Factorial ANOVA

Independent factorial

Johnny van Doorn

University of Amsterdam

2025-10-08

In this lecture we aim to:

ANOVA with 2 categorical predictors
Discuss interaction
Demonstration in JASP

Reading: Chapter 13

Independent factorial ANOVA

Two or more independent variables with two or more categories. One dependent variable.

Independent factorial ANOVA

The independent factorial ANOVA analyses the variance of multiple independent variables (Factors) with two or more categories.

Effects and interactions:

1 dependent/outcome variable
2 or more independent/predictor variables
- 2 or more cat./levels

Assumptions

Continuous variable
Random sample
Normally distributed
- Q-Q plot
Equal variance within groups
- Ratio of observed sd’s
- Welch correction only exists for one-way ANOVA

Formulas

Variance	Sum of squares	df	Mean squares	F-ratio
Model	\(\text{SS}_{\text{model}} = \sum{n_k(\bar{X}_k-\bar{X})^2}\)	\(k_{model}-1\)	\(\frac{\text{SS}_{\text{model}}}{\text{df}_{\text{model}}}\)	\(\frac{\text{MS}_{\text{model}}}{\text{MS}_{\text{error}}}\)
\(\hspace{2ex}A\)	\(\text{SS}_{\text{A}} = \sum{n_k(\bar{X}_k-\bar{X})^2}\)	\(k_A-1\)	\(\frac{\text{SS}_{\text{A}}}{\text{df}_{\text{A}}}\)	\(\frac{\text{MS}_{\text{A}}}{\text{MS}_{\text{error}}}\)
\(\hspace{2ex}B\)	\(\text{SS}_{\text{B}} = \sum{n_k(\bar{X}_k-\bar{X})^2}\)	\(k_B-1\)	\(\frac{\text{SS}_{\text{B}}}{\text{df}_{\text{B}}}\)	\(\frac{\text{MS}_{\text{B}}}{\text{MS}_{\text{error}}}\)
\(\hspace{2ex}AB\)	\(\text{SS}_{A \times B} = \text{SS}_{\text{model}} - \text{SS}_{\text{A}} - \text{SS}_{\text{B}}\)	\(df_A \times df_B\)	\(\frac{\text{SS}_{\text{AB}}}{\text{df}_{\text{AB}}}\)	\(\frac{\text{MS}_{\text{AB}}}{\text{MS}_{\text{error}}}\)
Error	\(\text{SS}_{\text{error}} = \sum{s_k^2(n_k-1)}\)	\(N-k_{model}\)	\(\frac{\text{SS}_{\text{error}}}{\text{df}_{\text{error}}}\)
Total	\(\text{SS}_{\text{total}} = \text{SS}_{\text{model}} + \text{SS}_{\text{error}}\)	\(N-1\)	\(\frac{\text{SS}_{\text{total}}}{\text{df}_{\text{total}}}\)

Variance in factorial designs

Example

In this example we will look at the amount of accidents in a car driving simulator while subjects where given varying doses of speed and alcohol.

Dependent variable
- Accidents
Independent variables
- Speed dose
  - None / Small / Large
- Alcohol dose
  - None / small / large

Data

SS full model

Variance	Sum of squares	df	Mean squares	F-ratio
Model	\(\text{SS}_{\text{model}} = \sum{n_k(\bar{X}_k-\bar{X})^2}\)	\(k_{model}-1\)	\(\frac{\text{SS}_{\text{model}}}{\text{df}_{\text{model}}}\)	\(\frac{\text{MS}_{\text{model}}}{\text{MS}_{\text{error}}}\)

Predicts group means for each cell of the design:

     speed  alcohol accidents  n
1 none (S) none (A)    2.1060 20
2 some (S) none (A)    2.9445 20
3 much (S) none (A)    3.8880 20
4 none (S) some (A)    3.4435 20
5 some (S) some (A)    4.7625 20
6 much (S) some (A)    5.5790 20
7 none (S) much (A)    5.2970 20
8 some (S) much (A)    6.5125 20
9 much (S) much (A)    7.5720 20

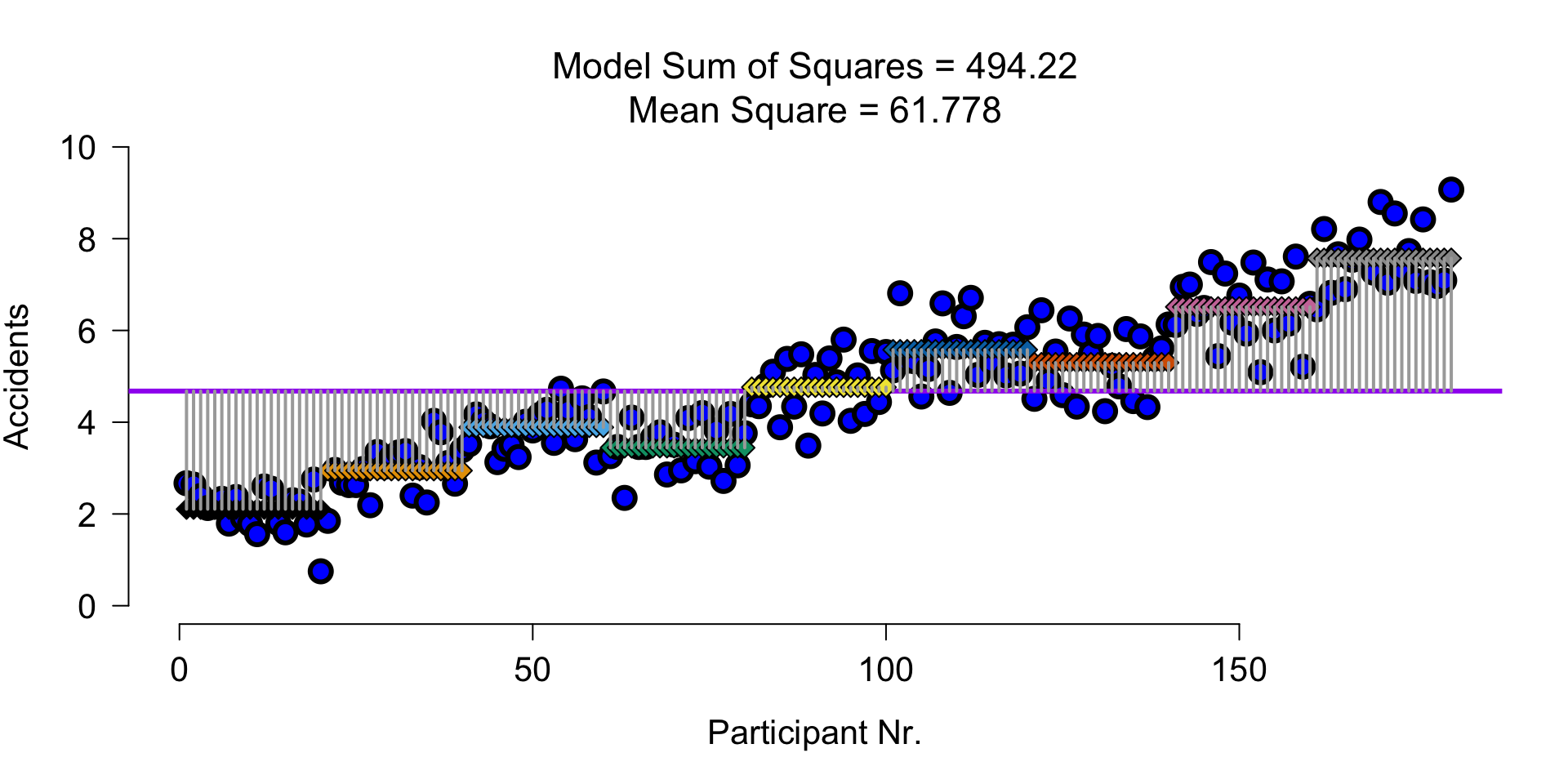

SS full model visual

SS error

Variance	Sum of squares	df	Mean squares	F-ratio
Error	\(\text{SS}_{\text{error}} = \sum{s_k^2(n_k-1)}\)	\(N-k\)	\(\frac{\text{SS}_{\text{error}}}{\text{df}_{\text{error}}}\)

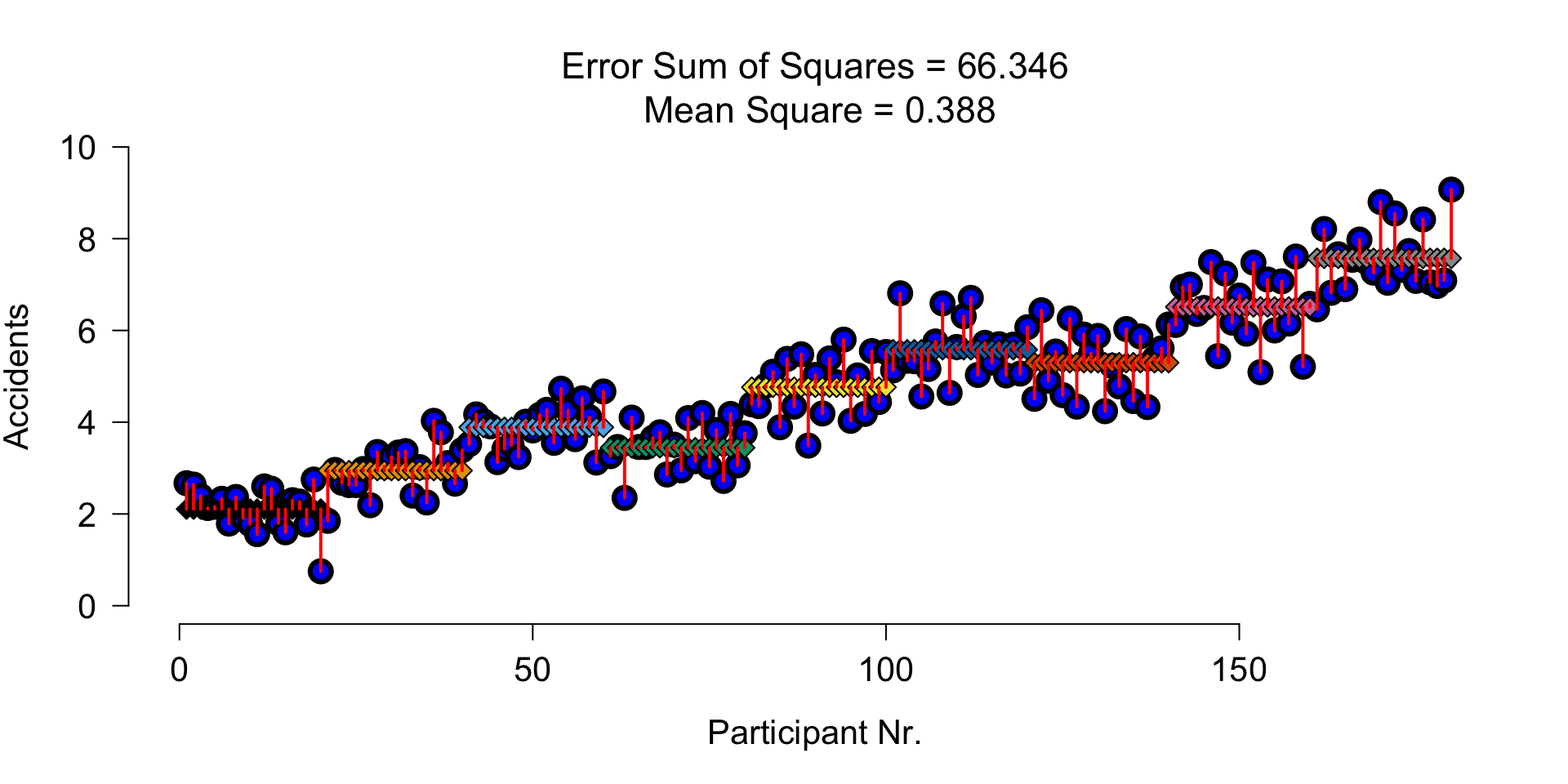

SS error visual

SS A Speed

Variance	Sum of squares	df	Mean squares	F-ratio
\(\hspace{2ex}A\)	\(\text{SS}_{\text{A}} = \sum{n_k(\bar{X}_k-\bar{X})^2}\)	\(k_A-1\)	\(\frac{\text{SS}_{\text{A}}}{\text{df}_{\text{A}}}\)	\(\frac{\text{MS}_{\text{A}}}{\text{MS}_{\text{error}}}\)

none (S) some (S) much (S)
3.615500 4.739833 5.679667

SS A Speed Visual

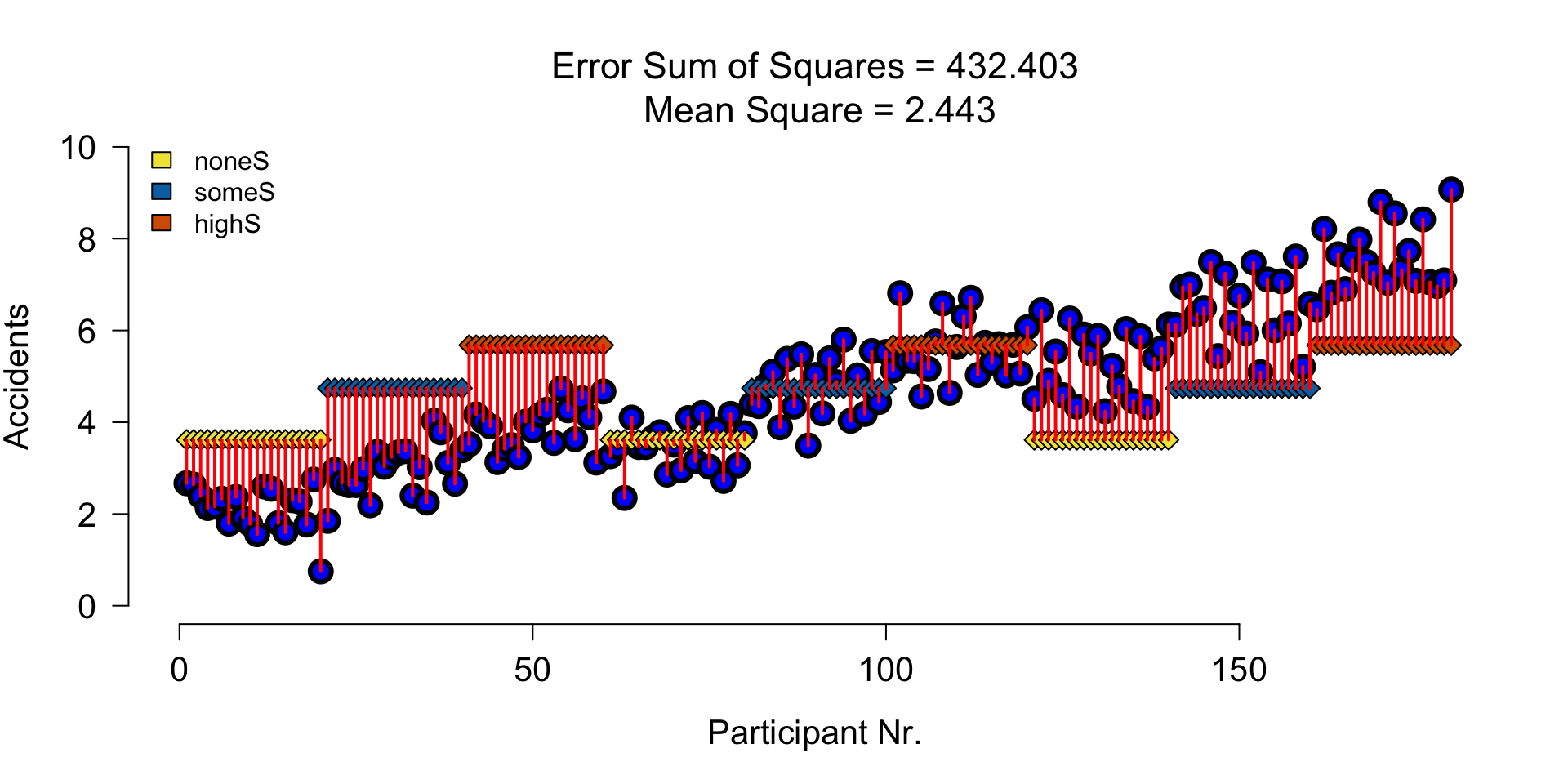

SS A Speed Error Visual

SS B Alcohol

Variance	Sum of squares	df	Mean squares	F-ratio
\(\hspace{2ex}B\)	\(\text{SS}_{\text{B}} = \sum{n_k(\bar{X}_k-\bar{X})^2}\)	\(k_B-1\)	\(\frac{\text{SS}_{\text{B}}}{\text{df}_{\text{B}}}\)	\(\frac{\text{MS}_{\text{B}}}{\text{MS}_{\text{error}}}\)

none (A) some (A) much (A)
  2.9795   4.5950   6.4605

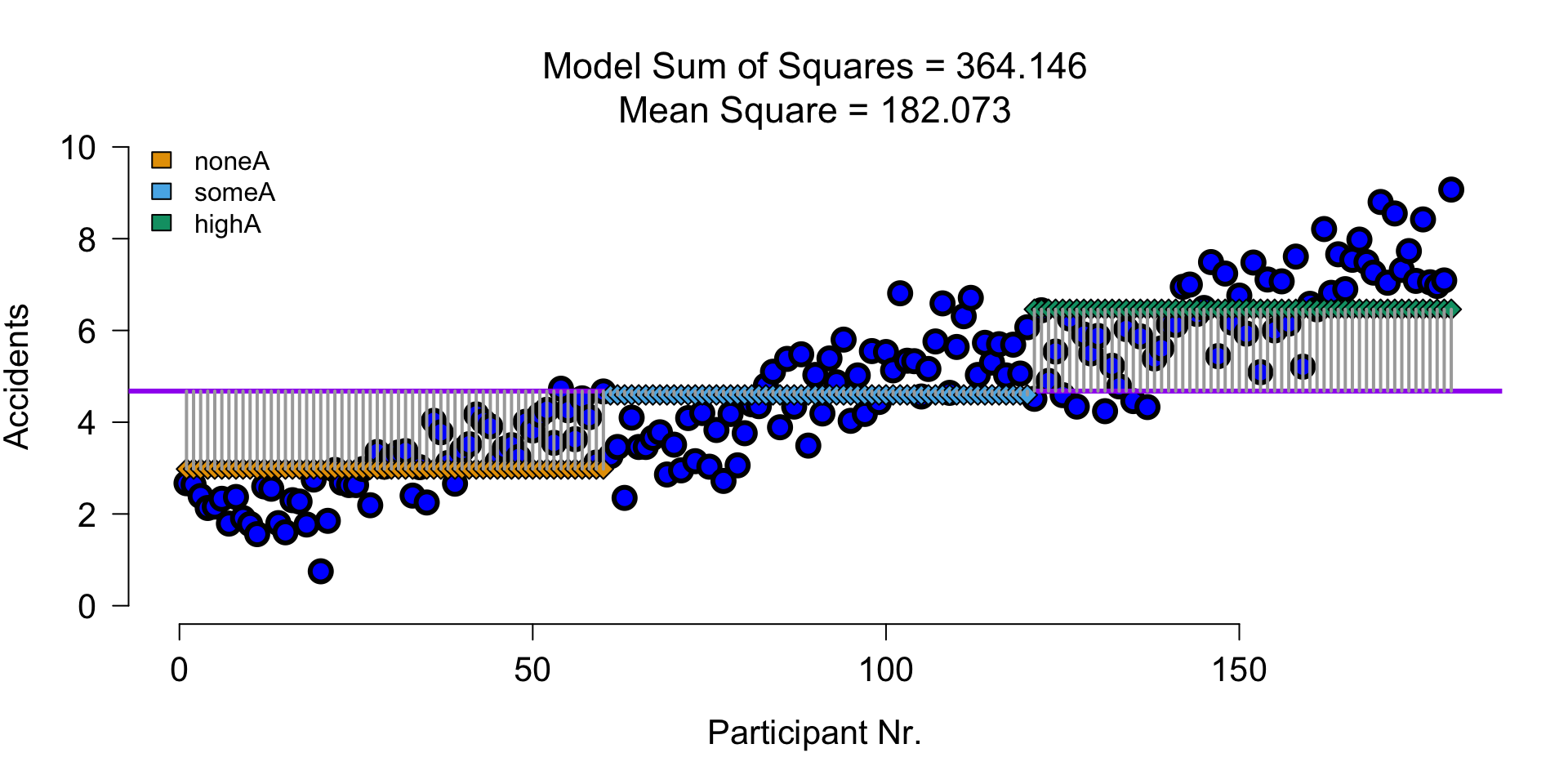

SS B Alcohol Visual

SS B Alcohol Error Visual

SS AB Alcohol x Speed

Variance	Sum of squares	df	Mean squares	F-ratio
\(\hspace{2ex}AB\)	\(\text{SS}_{A \times B} = \text{SS}_{\text{model}} - \text{SS}_{\text{A}} - \text{SS}_{\text{B}}\)	\(df_A \times df_B\)	\(\frac{\text{SS}_{\text{AB}}}{\text{df}_{\text{AB}}}\)	\(\frac{\text{MS}_{\text{AB}}}{\text{MS}_{\text{error}}}\)

# Sums of squares for the interaction between speed and alcohol
ss.speed.alcohol <- ss.model - ss.speed - ss.alcohol
ss.speed.alcohol

[1] 1.910727

Using mean squares to compute \(F\)

For every \(F\)-statistic, we use the \(MS_{error}\) of the full model:

\[\begin{aligned} F_{Speed} &= \frac{{MS}_{Speed}}{{MS}_{error}} \\ F_{Alcohol} &= \frac{{MS}_{Alcohol}}{{MS}_{error}} \\ F_{Alcohol \times Speed} &= \frac{{MS}_{Alcohol \times Speed}}{{MS}_{error}} \\ \end{aligned}\]

Interaction

\[F_{Alcohol \times Speed}\]

N          <- length(accidents)
k.speed    <- 3
k.alcohol  <- 3
k.model    <- 9
df.speed   <- k.speed   - 1
df.alcohol <- k.alcohol - 1
df.speed.alcohol <- df.speed * df.alcohol

ms.speed.alcohol <- ss.speed.alcohol / df.speed.alcohol

df.error <- N - k.model
ms.error <- ss.error / df.error

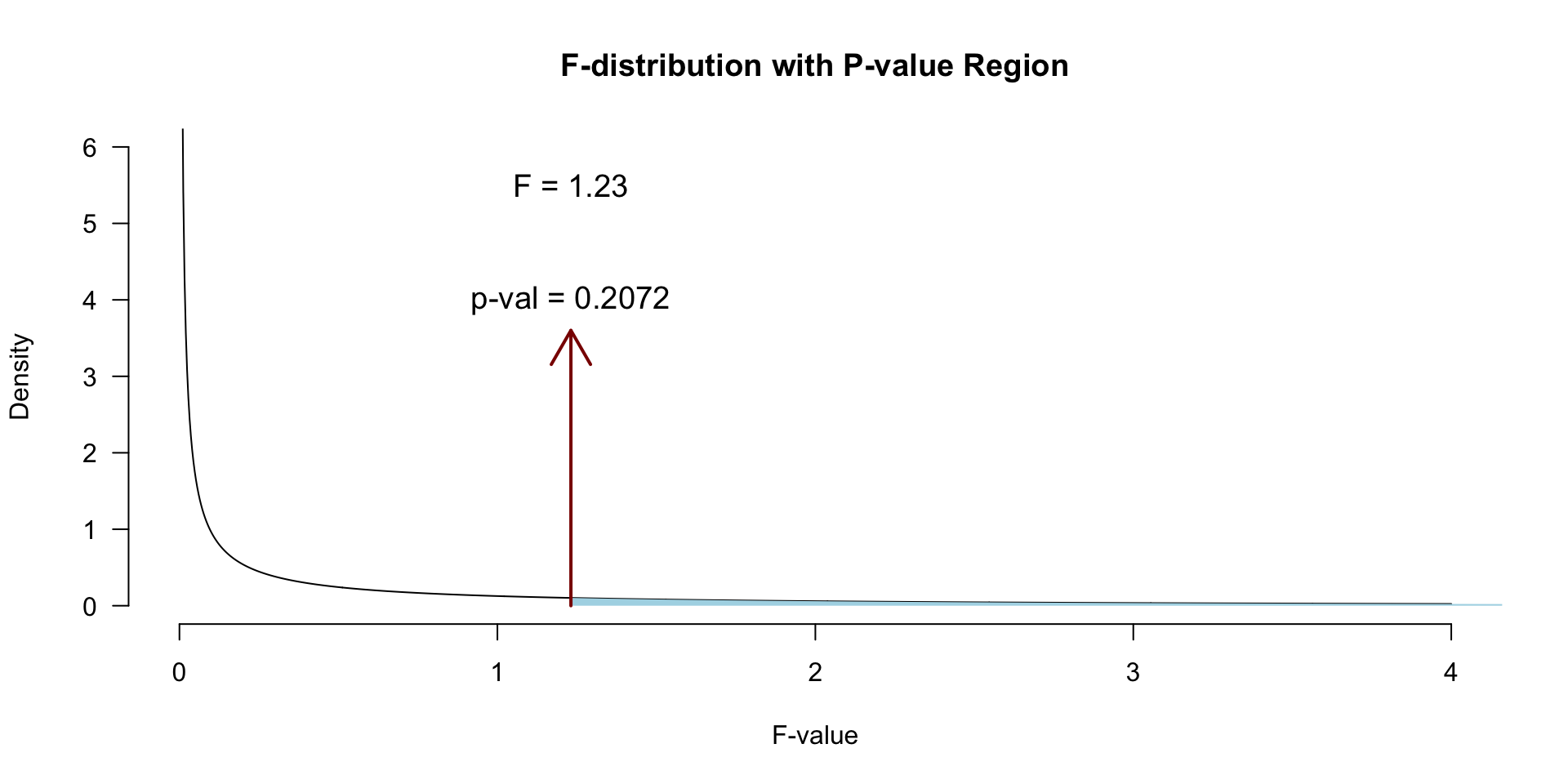

\(P\)-value

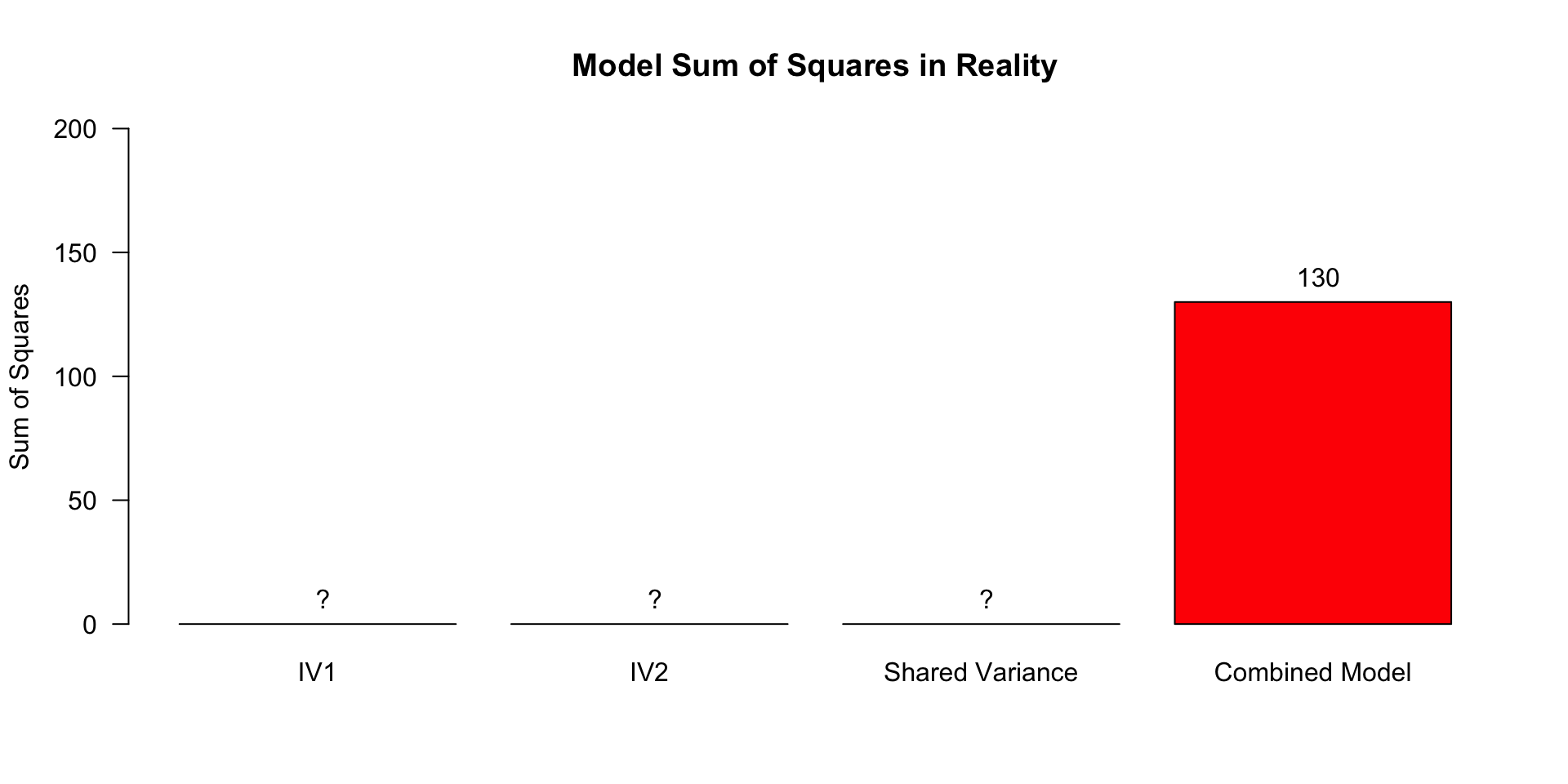

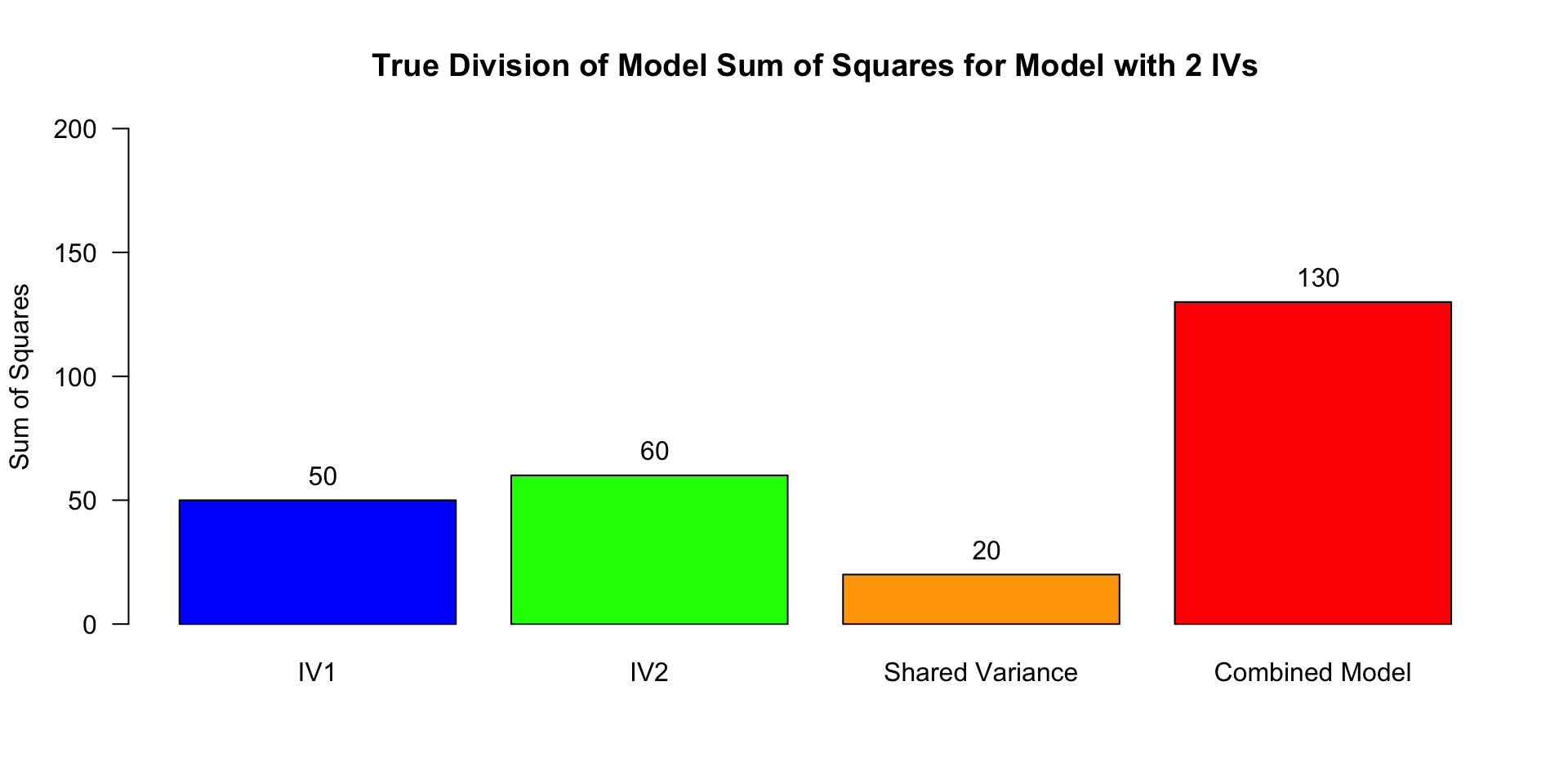

Partition the explained variance (BONUS)

In reality, we do not know exactly how the shared variance is distributed across these three sources (IV1, IV2, shared)

Partition the explained variance (BONUS)

Fit a model with only IV1, then use that to compute the explained variance for IV2: \(SS_{M1} = 70 \rightarrow SS_{IV2} = 130 - 70 = 60\)
Fit a model with only IV2, then use that to compute the explained variance for IV1: \(SS_{M2} = 50 \rightarrow SS_{IV1} = 130 - 50 = 80\)
See also Oliver Twisted from Chapter 13

Contrast

Planned comparisons

Exploring differences of theoretical interest
Higher precision
Higher power

Post-Hoc

Unplanned comparisons

Exploring all possible differences
Adjust p-value for inflated type 1 error
- P(1 type-I error) = \(0.05\)
- P(not 1 type-I error) = \(0.95\)
- P(not 5 type-I errors) = \(0.95^5 = 0.774\)
Bonferroni more conservative, Tukey more permissive

Exam note: know where the options are, exam question will inform you which correction to use

Effect size in ANOVA

General effect size measure: Partial omega squared \(\omega_p^2\)

How to interpret?

\(\omega^2\) and \(\omega_p^2\)	Magnitude of Effect	Interpretation
0.00–0.009	Very small	Trivial practical importance
0.01–0.05	Small	Small but meaningful variance explained
0.06–0.13	Medium	Moderate variance explained
≥ 0.14	Large	Substantial variance explained

Effect size in follow-up tests

Effect sizes of contrasts or post-hoc comparisons: Cohen’s \(d\)

How to interpret?

Cohen’s d	Magnitude of Effect	Interpretation
0.00–0.19	Very small	Likely negligible in most contexts
0.20–0.49	Small	Noticeable but modest difference
0.50–0.79	Medium	Moderate, practically meaningful difference
≥ 0.80	Large	Substantial, easily noticeable difference

JASP

Closing

Recap

With multiple predictor variables:

We are still explaining variance
We check the interaction
- Plots!
- F-value of interaction effect
- Conditional post-hoc tests

Recommended Exercises

Exercise 13.1, Exercise 13.3, Exercise 13.6
You do not need to compute effects sizes by hand!
