7. Linear Model (Regression)

Author
Affiliation

Johnny van Doorn

University of Amsterdam

Published

September 16, 2025

In this lecture we discuss:

  • Correlation
    • In JASP
    • Control for third variable
  • Linear model
    • Theory
    • In JASP

Reading: Chapters 7, 8-8.8

Partial correlation

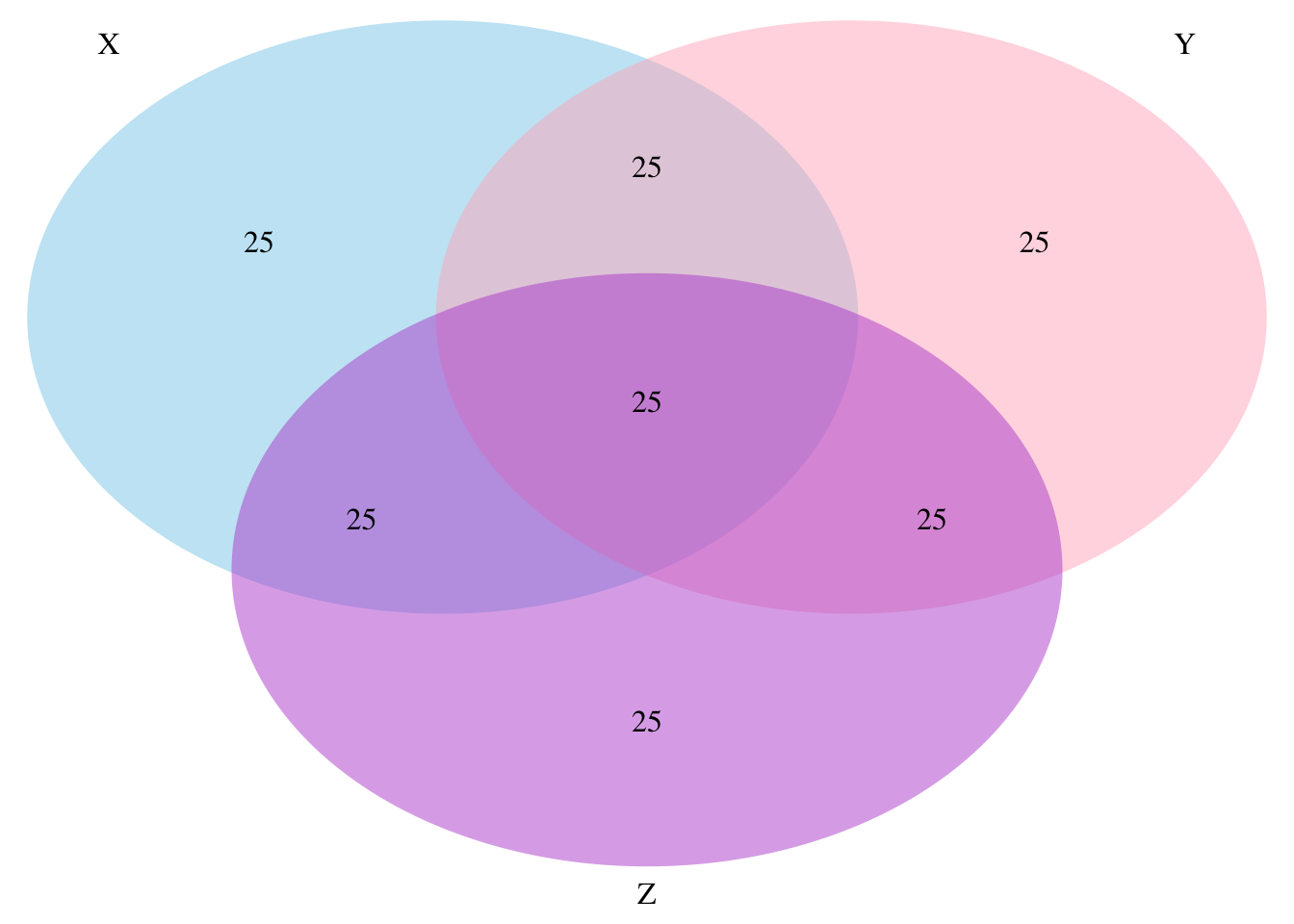

Venn diagram of Variance

Partial correlation

\[\LARGE{r_{xy \cdot z} = \frac{r_{xy} - r_{xz} r_{yz}}{\sqrt{(1 - r_{xz}^2)(1 - r_{yz}^2)}}}\]

adverts <- data$adverts

cor.sales.airplay    <- cor(sales,airplay)
cor.sales.adverts    <- cor(sales,adverts)
cor.airplay.adverts  <- cor(airplay,adverts)

data.frame(cor.sales.airplay, cor.sales.adverts, cor.airplay.adverts)
  cor.sales.airplay cor.sales.adverts cor.airplay.adverts
1         0.6864408        0.08531506          -0.1130884
numerator   <- cor.sales.airplay - (cor.sales.adverts * cor.airplay.adverts)
denominator <- sqrt( (1-cor.sales.adverts^2)*(1-cor.airplay.adverts^2) )

partial.correlation <- numerator / denominator

partial.correlation
[1] 0.7031469

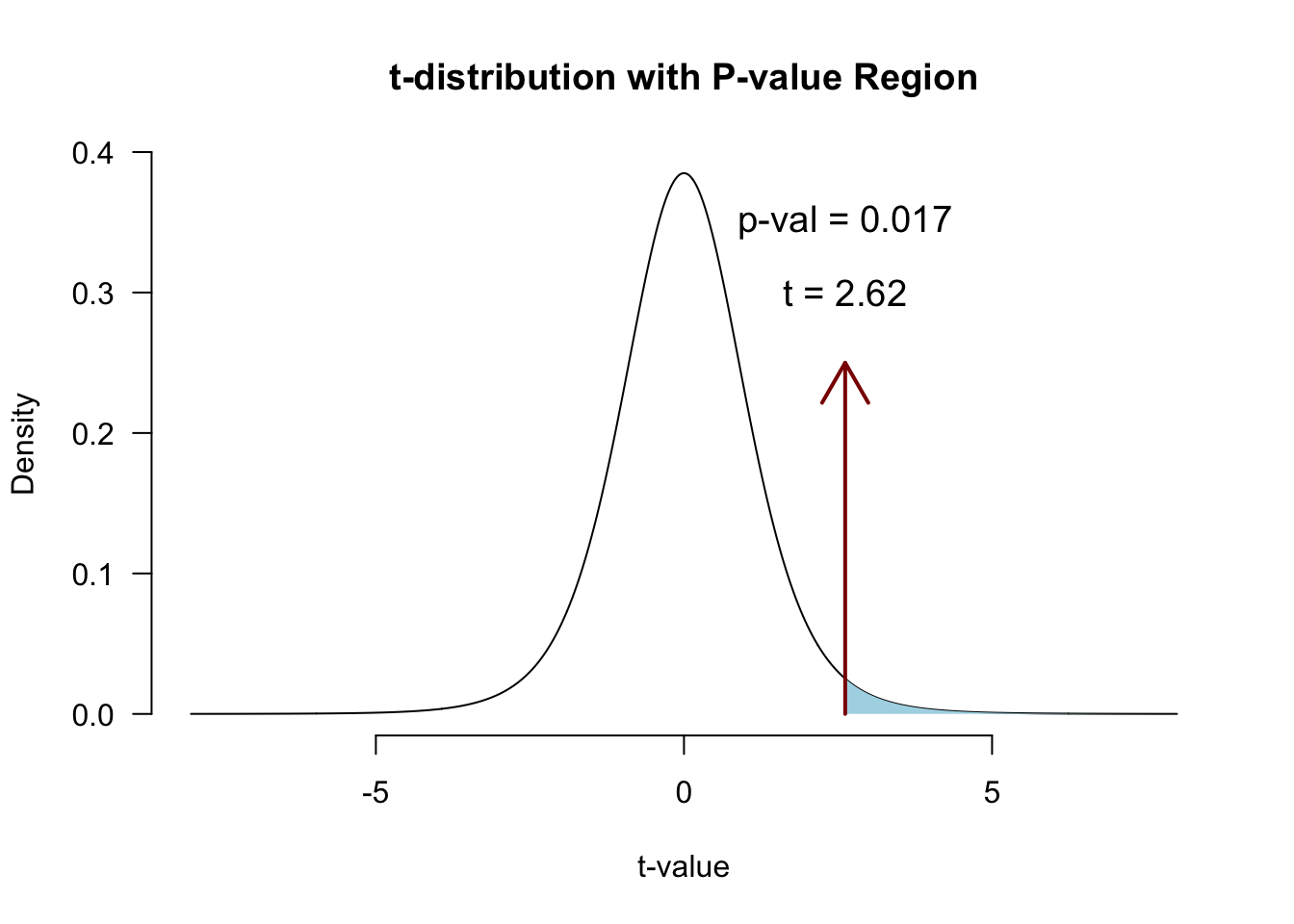

Significance of partial correlation

Locate in t-distribution

df <- N - 3

t.pr <- ( partial.correlation*sqrt(df) ) / sqrt(1-partial.correlation^2)
t.pr
[1] 2.616364

p-value

Regression
(one predictor)

Regression

\[\LARGE{\text{outcome} = \text{model prediction} + \text{error}}\]

In statistics, linear regression is a linear approach for modeling the relationship between a scalar dependent variable y and one or more explanatory variables denoted X. The case of one explanatory variable is called simple linear regression.

\[\LARGE{Y_i = \beta_0 + \beta_1 X_i + \epsilon_i}\]

In linear regression, the relationships are modeled using linear predictor functions whose unknown model parameters are estimated from the data.

Source: wikipedia

Assumptions of the Linear Model

A selection from Field (Section 8.4.1):

  • Sensitivity (Section 6.4)
    • Are there outliers?
  • Normality (Section 6.7)
    • Are the model errors non-normally distributed?
  • Linearity (Section 6.6)
    • Is the association non-linear?
  • Homoscedasticity (Section 6.7)
    • Is there systematic model error?

The greater the assumption violation, the less reliable your results are

Exam Note about Assumptions

For exam 1:

  • We only focus on Sensitivity, Normality, Linearity
  • We only focus on assessing the assumptions
  • Don’t need to study ch6; lecture and application in ch8 suffice

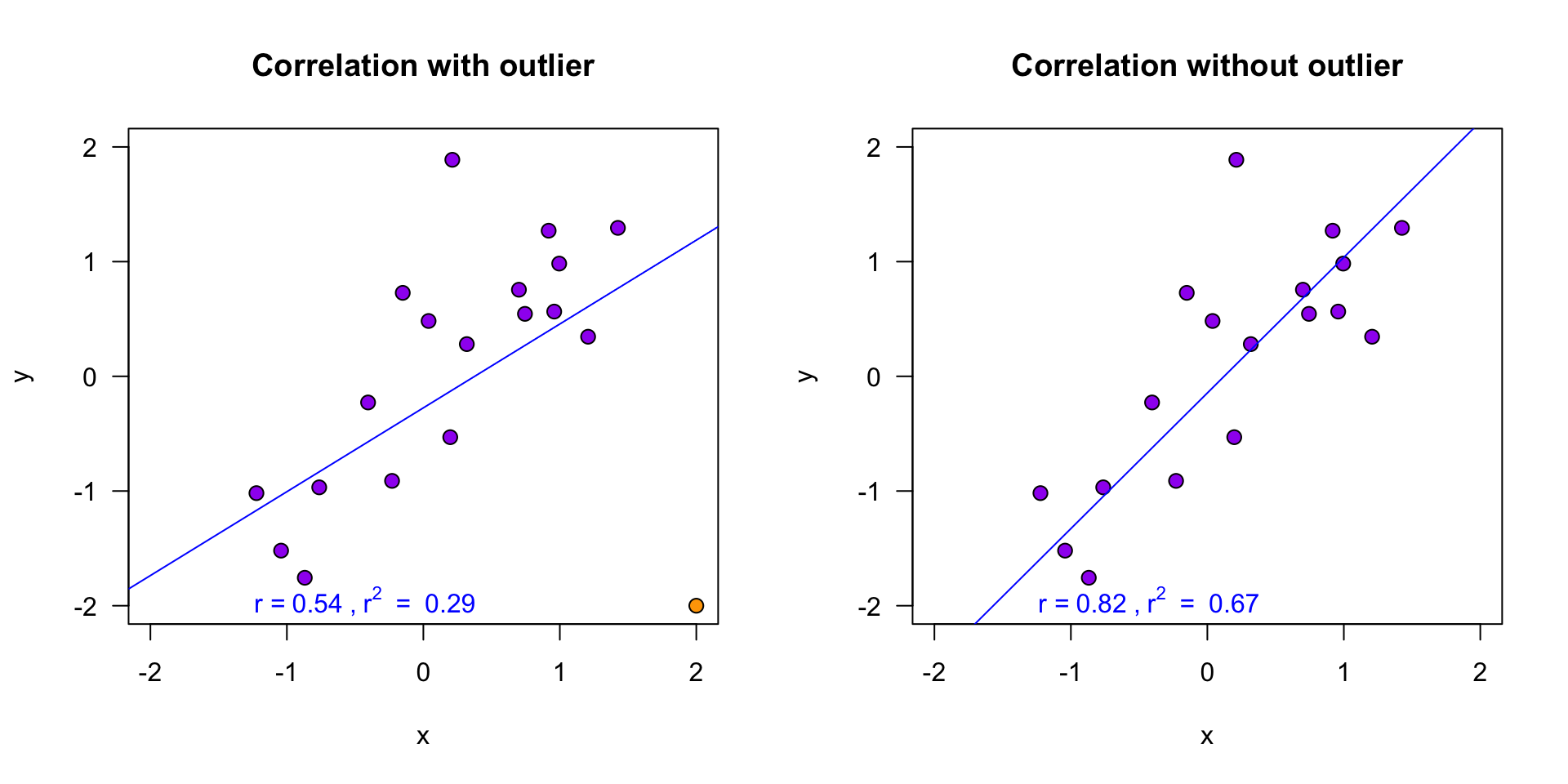

Sensitivity

Outliers

  • Extreme residuals (e.g., > 3)
  • Cook’s distance (e.g., > 1)
  • Check Q-Q, residuals plots, casewise diagnostics

Sensitivity

Normality

  • Residuals should be normally distributed
  • Look at Q-Q plot standardized residuals. Most points should be on the diagonal
  • After the analysis is complete because it’s based on the residuals
  • See figure 6.25

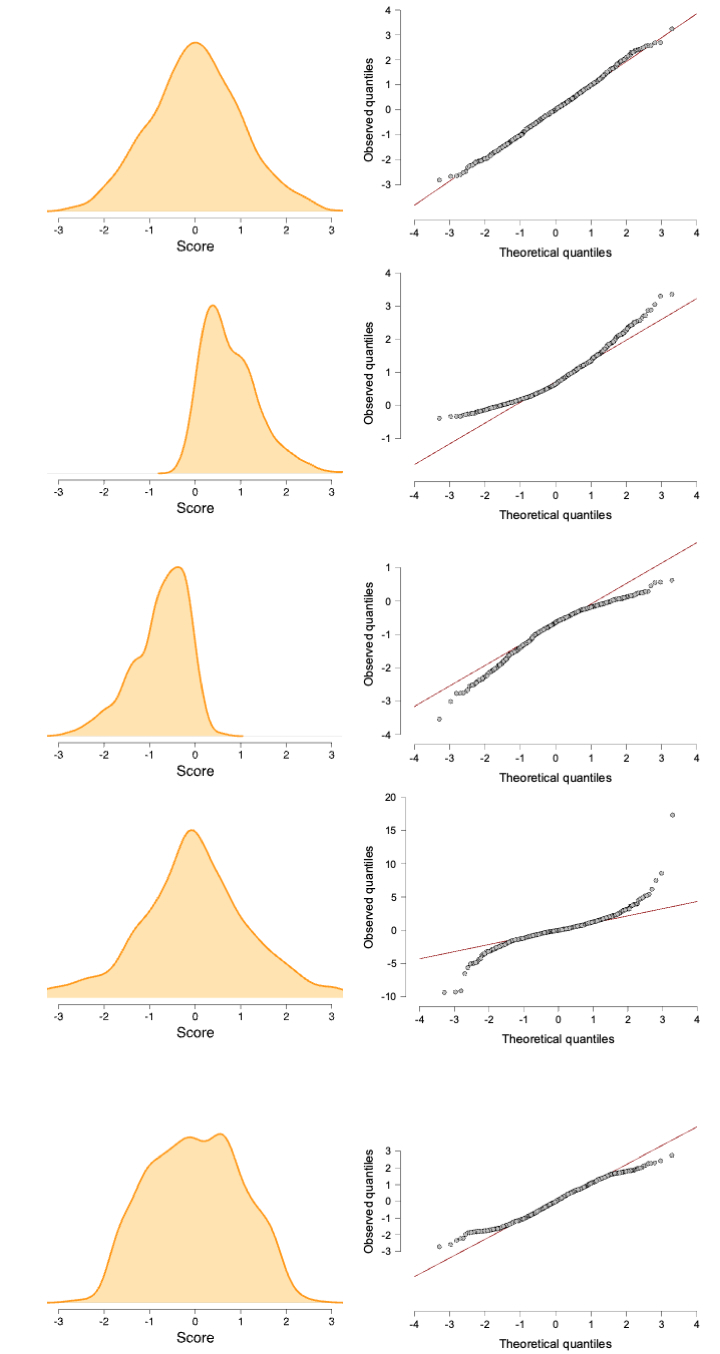

figure 6.25

Linearity

  • The relationship between predictors and the outcome should be linear
  • Inspect using plots:
    • Scatter plots (or partial plots) of predictors vs. outcome
    • Residuals vs. predicted
  • See figure 6.28

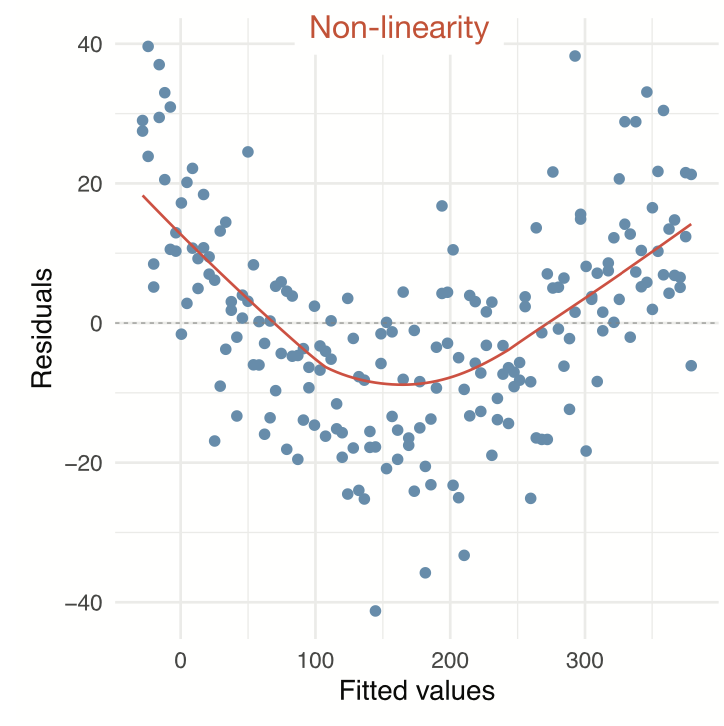

figure 6.28

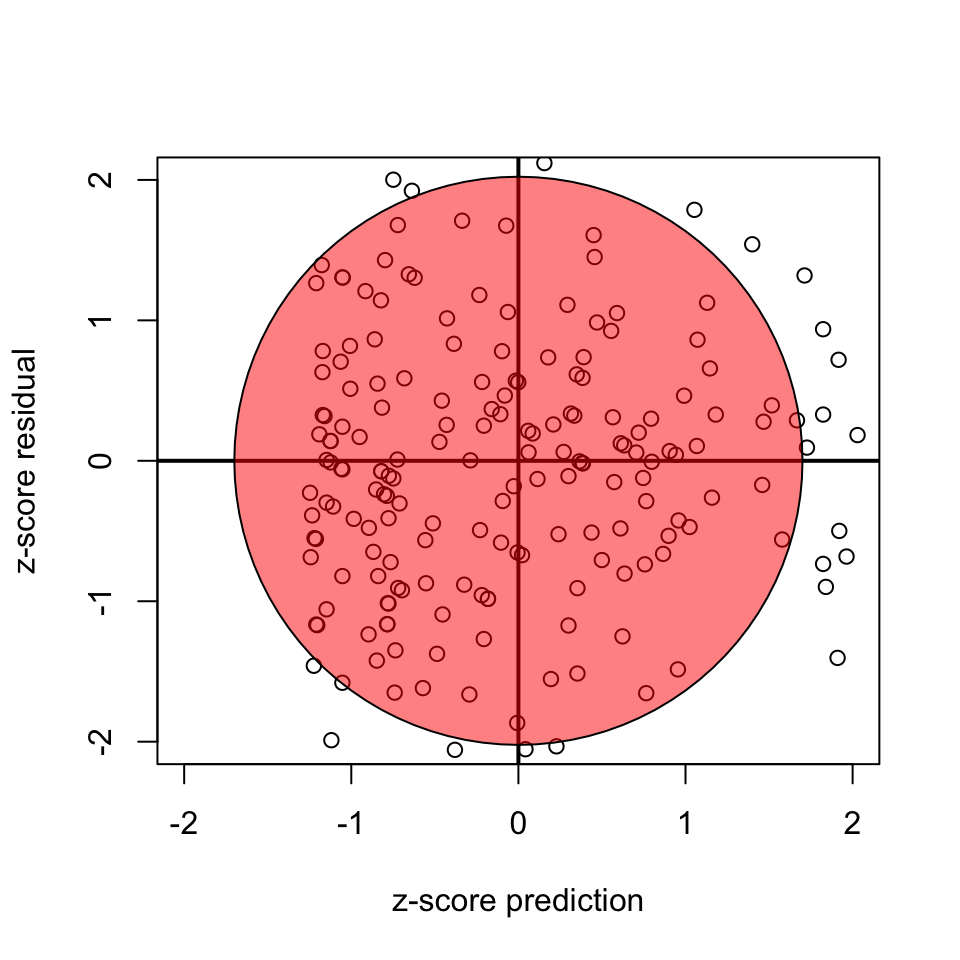

Homoscedasticity

  • Variance of residuals should be equal across all expected values
  • Look at scatterplot of residuals vs. predicted values. Ideally it’s an uncorrelated, round cloud
  • For examples of violations, see here
  • After the analysis is complete because it’s based on the residuals

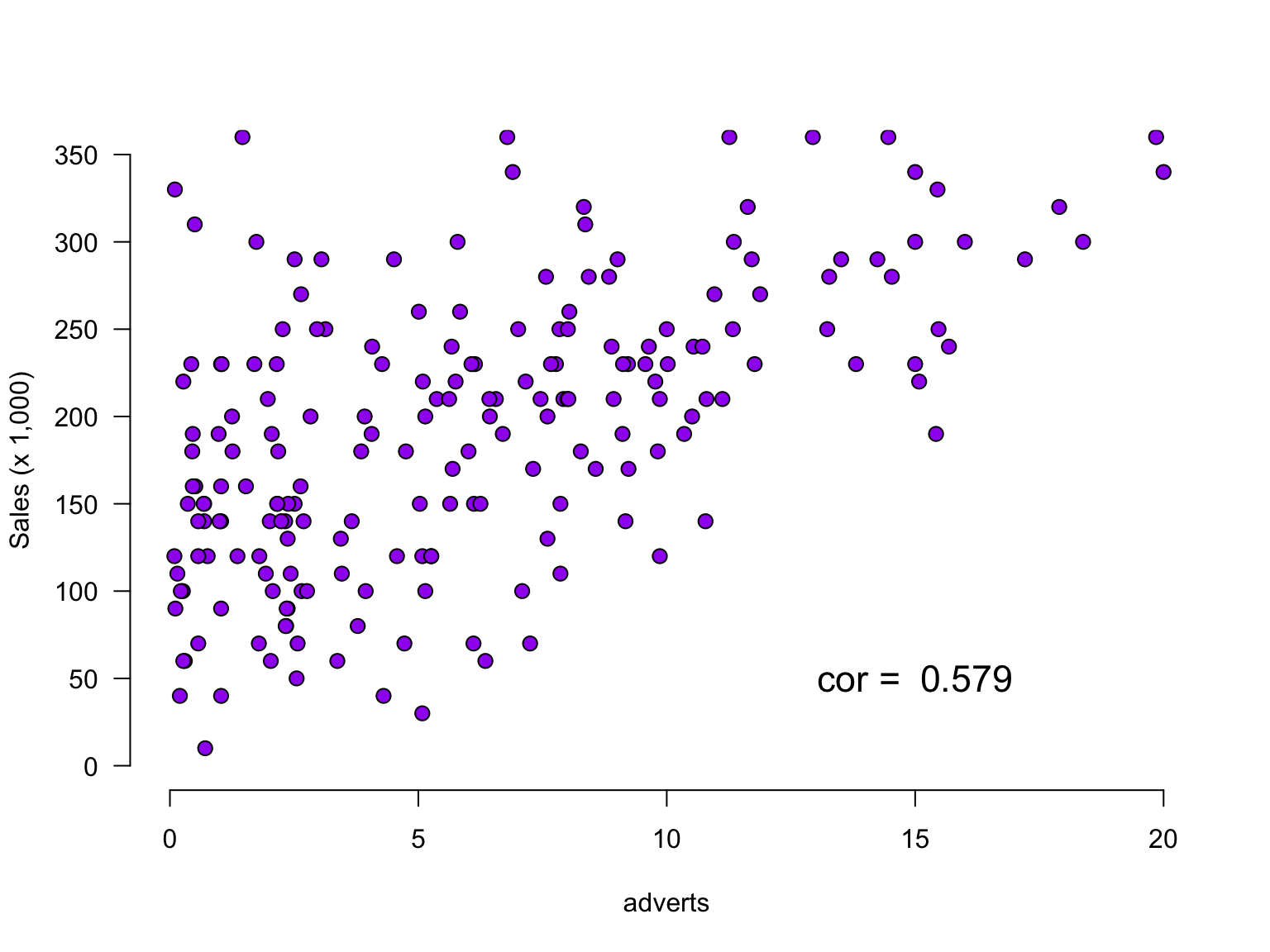

The data

Predict album sales (x 1,000 copies) based on adverts (x 100,000£).

The data

Calculate regression parameters

\[{sales}_i = b_0 + b_1 {adverts}_i + \epsilon_i\]

adverts  <- data$adverts
sales    <- data$sales

Calculate \(b_1\)

\[b_1 = r_{xy} \frac{s_y}{s_x}\]

# Calculate b1

cor.sales.adverts <- cor(sales,adverts)
sd.sales          <- sd(sales)
sd.adverts        <- sd(adverts)

b1 <- cor.sales.adverts * ( sd.sales / sd.adverts )
b1
[1] 9.613511

Calculate \(b_0\)

\[b_0 = \bar{y} - b_1 \bar{x}\]

mean.sales    <- mean(sales)
mean.adverts  <- mean(adverts)

b0 <- mean.sales - b1 * mean.adverts
b0
[1] 134.1274

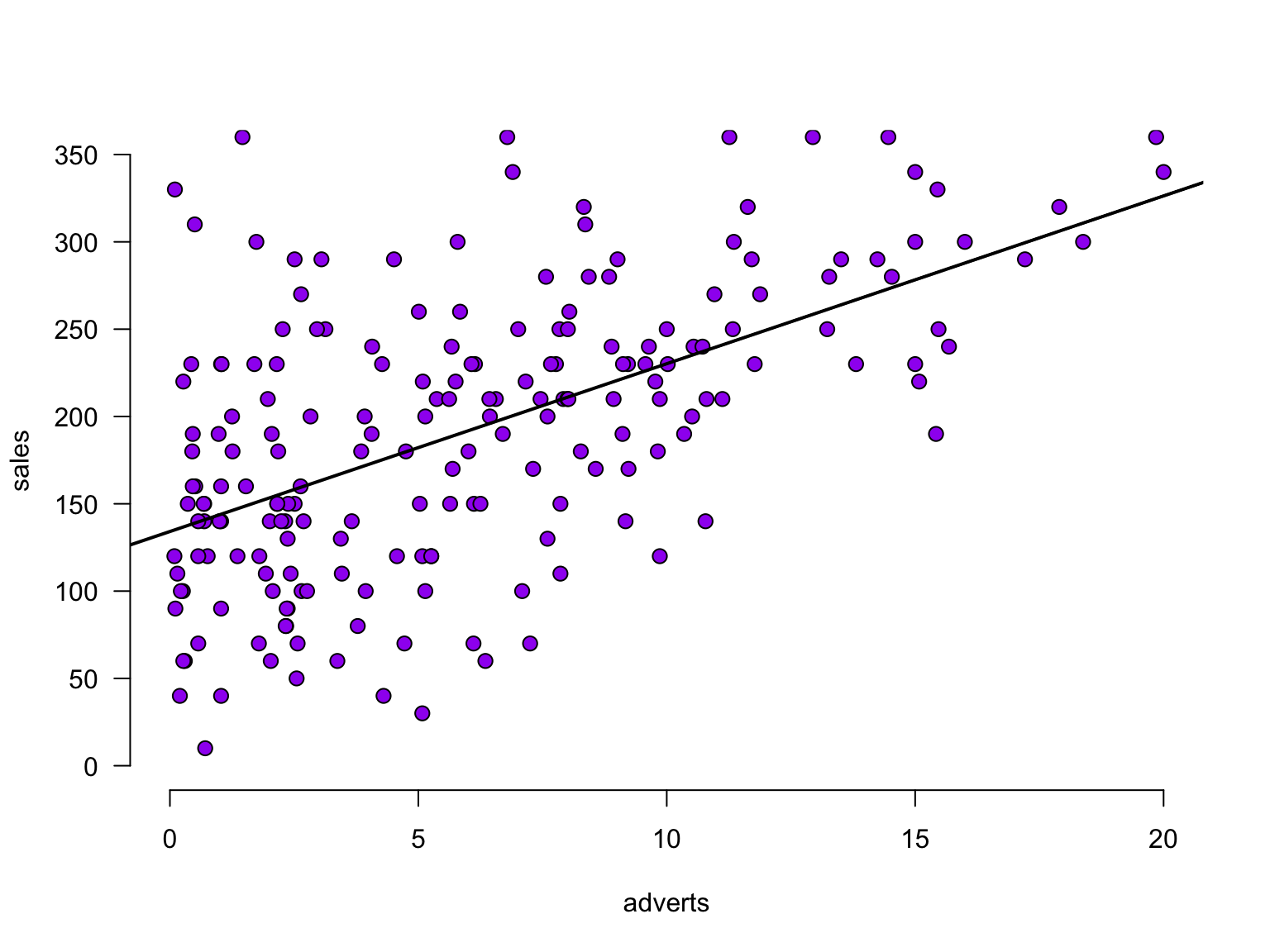

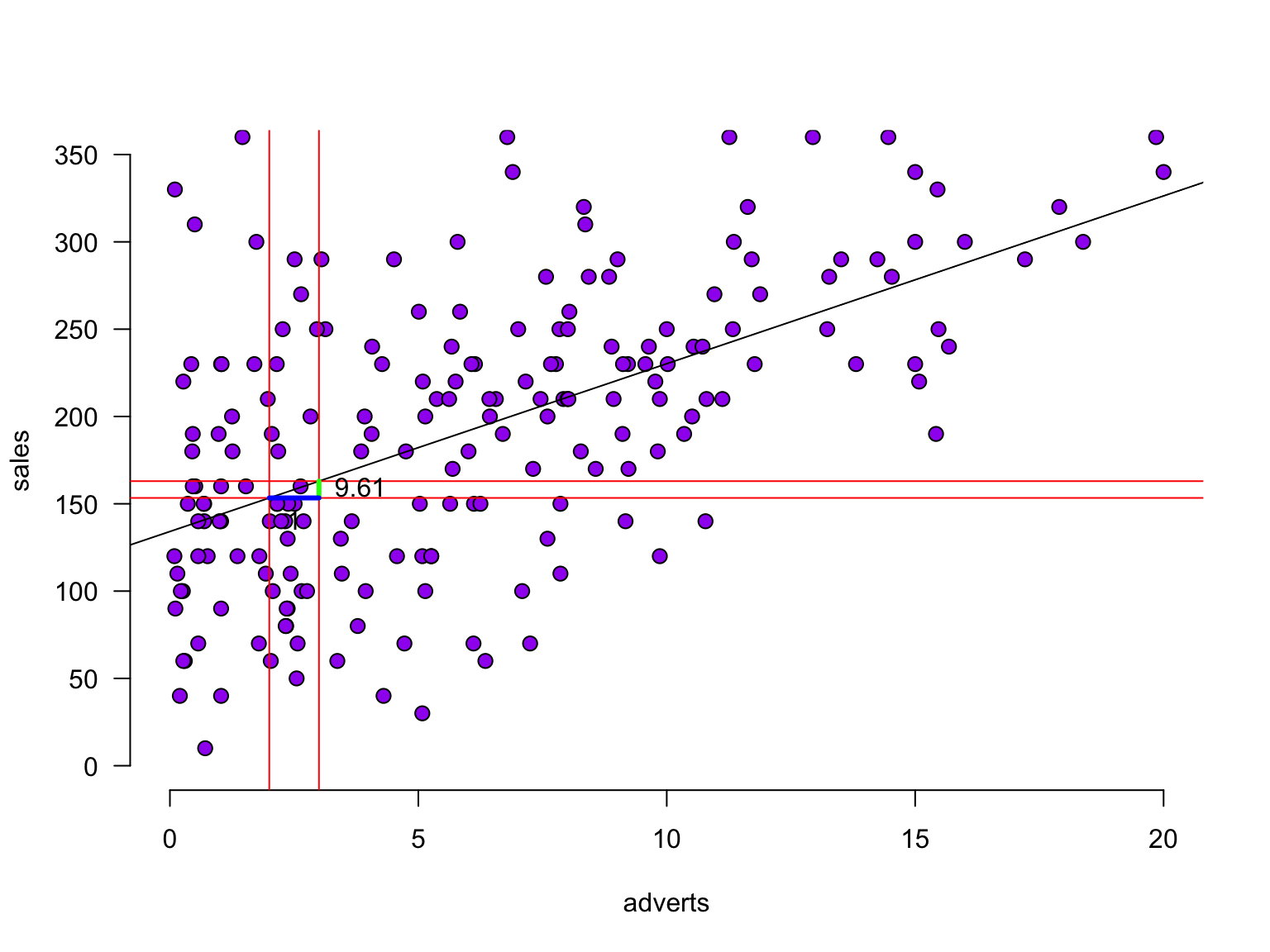

The slope

The slope

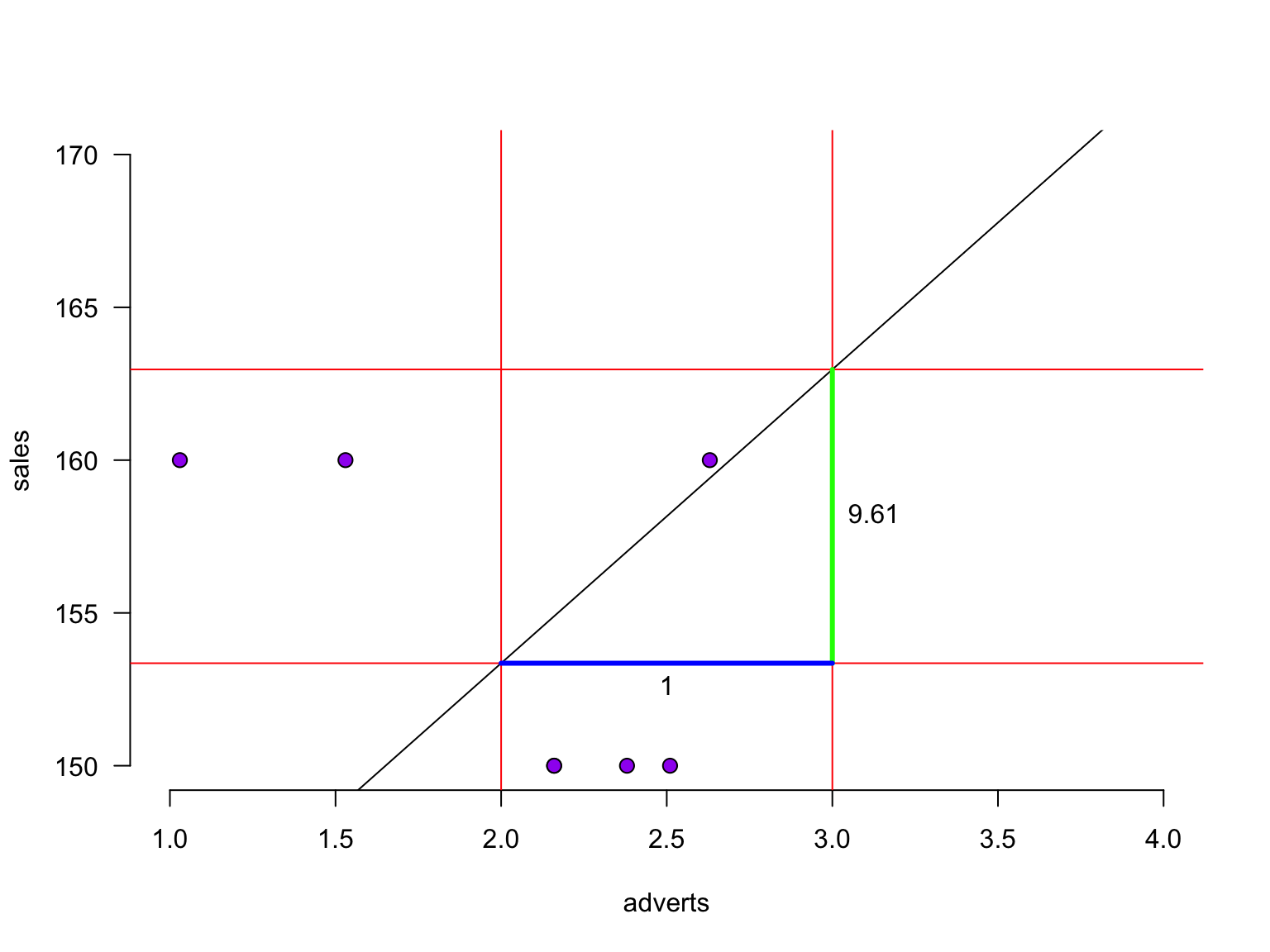

The slope - zoomed in

For every additional adverts, we predict sales to increase by 9.61

Define regression equation

\[\widehat{sales} = {\text{model prediction}} = b_0 + b_1 {adverts}\] \[\widehat{sales} = {\text{model prediction}} = 134.13 + 9.61\times {adverts}\]

So now we can add the expected sales based on this model

prediction <- b0 + b1 * adverts
data$prediction <- round(prediction, 2)

Predicted values

Let’s have a look

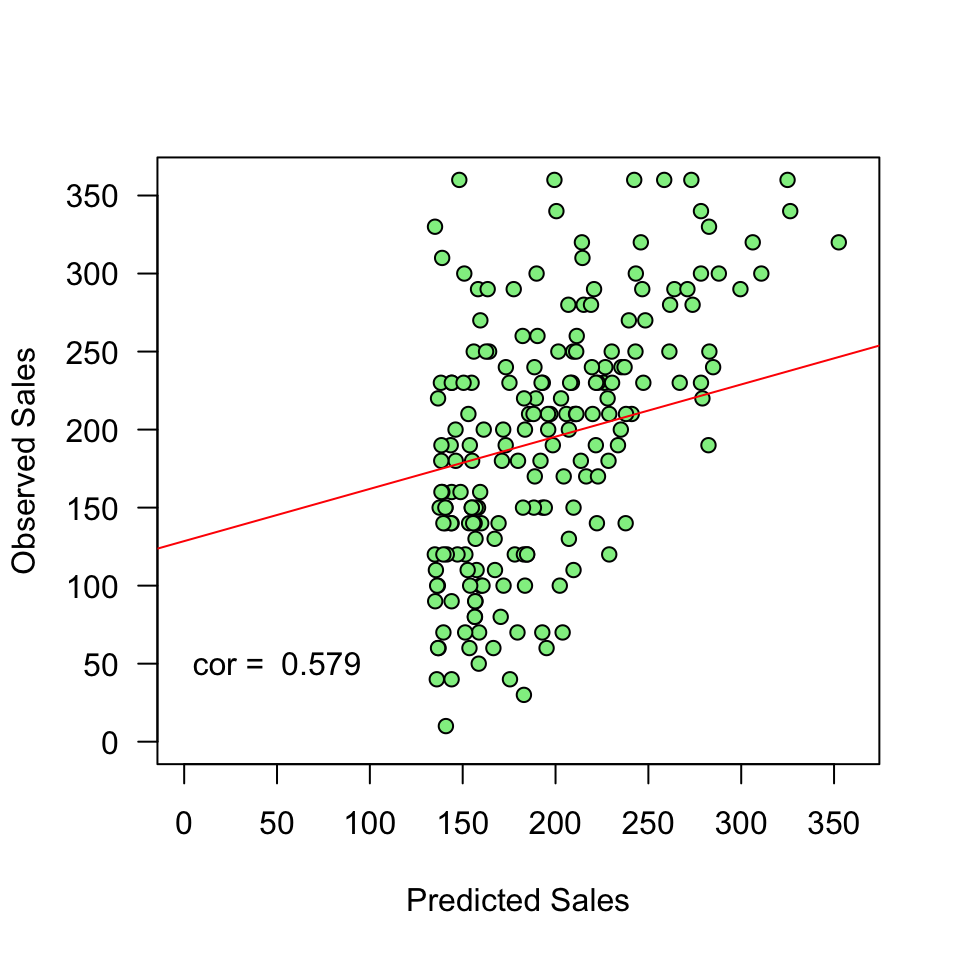

\(y\) vs \(\hat{y}\)

And lets have a look at this relation between model prediction and observed

Error

The error (residual) is the difference between the model predictions and observed values

error <- sales - prediction
data$error <- round(error, 2)

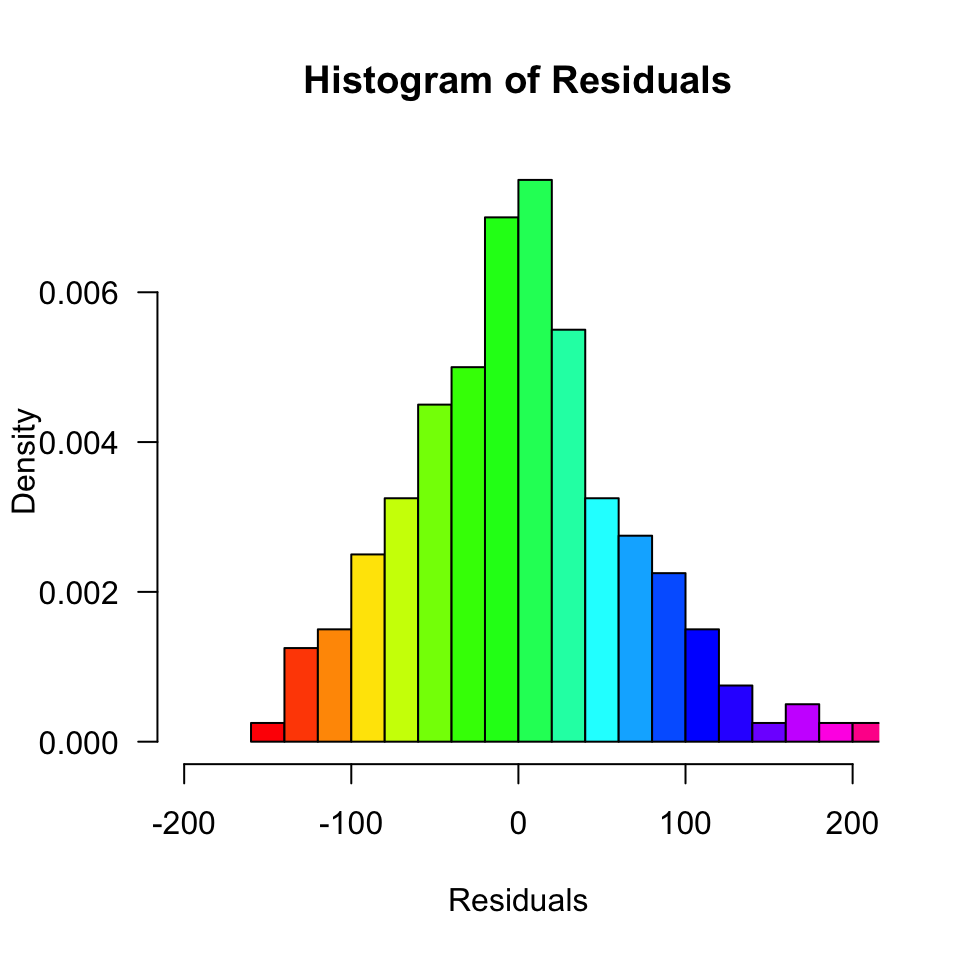

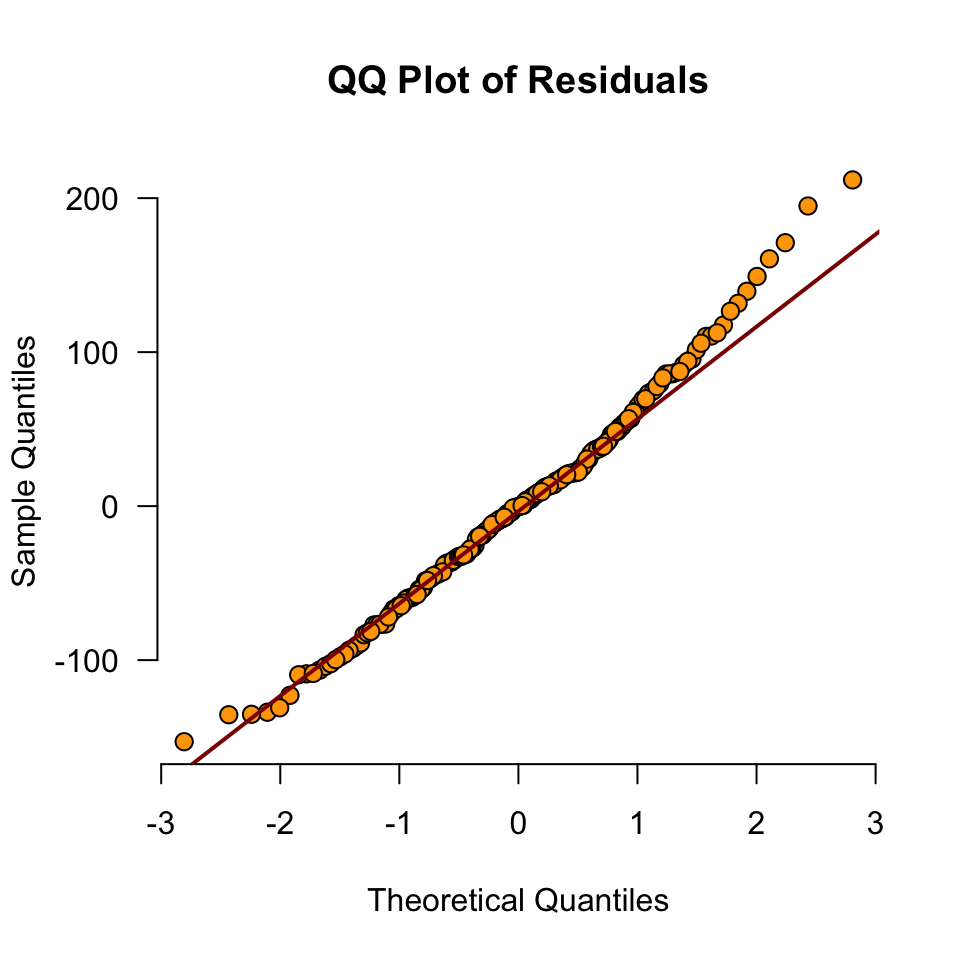

Normality of Residuals

Are the residuals normally distributed?

Model fit

  • The fit of the model can be viewed in terms of the correlation (\(r\)) between the predictions and the observed values: if the predictions are perfect, the correlation will be 1.
  • For simple regression, this is equal to the correlation between adverts and sales. For multiple regression (block 3), these will differ.
r <- cor(prediction, sales)
r
[1] 0.5785264

Explained variance

Squaring this correlation gives the proportion of variance in sales that is explained by adverts:

r^2
[1] 0.3346928

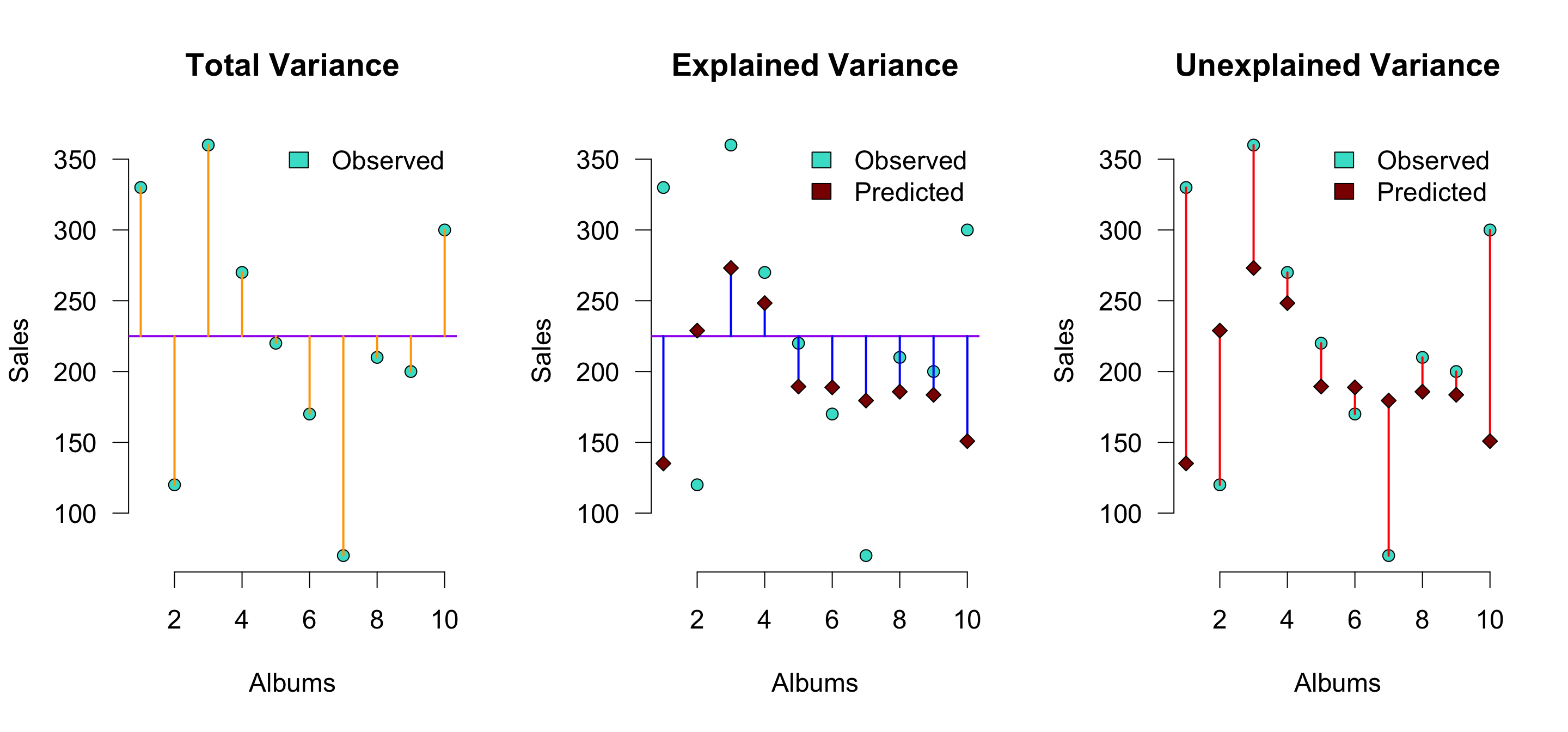

Explained variance visually (\(n = 10\))

\(r^2\) is the proportion of blue to orange, while \(1 - r^2\) is the proportion of red to orange

Calculate t-values for b’s for hypothesis testing

We can also convert each \(b\) to a \(t\)-statistic, since that has a known sampling distribution:

\[\begin{aligned} t_{n-p-1} &= \frac{b - \mu_b}{{SE}_b} \\ df &= n - p - 1 \\ \end{aligned}\]

Where \(b\) is the beta coefficient, \({SE}\) is the standard error of the beta coefficient, \(n\) is the number of subjects and \(p\) the number of predictors. \(\mu_b\) is the null-hypothesized value for \(b\) - usually set to 0.

Converting b to \(t\)

# Get Standard error's for b (bonus)
se.b1 <- sqrt((n/(n-2)) * mean(error^2) / (var(adverts) * (n-1))); se.b1
[1] 0.9632463
# Calculate t for b1
mu.b1 <- 0
t.b1  <- (b1 - mu.b1) / se.b1; t.b1
[1] 9.980326
n     <- nrow(data) # number of rows
p     <- 1          # number of predictors
df.b1 <- n - p - 1

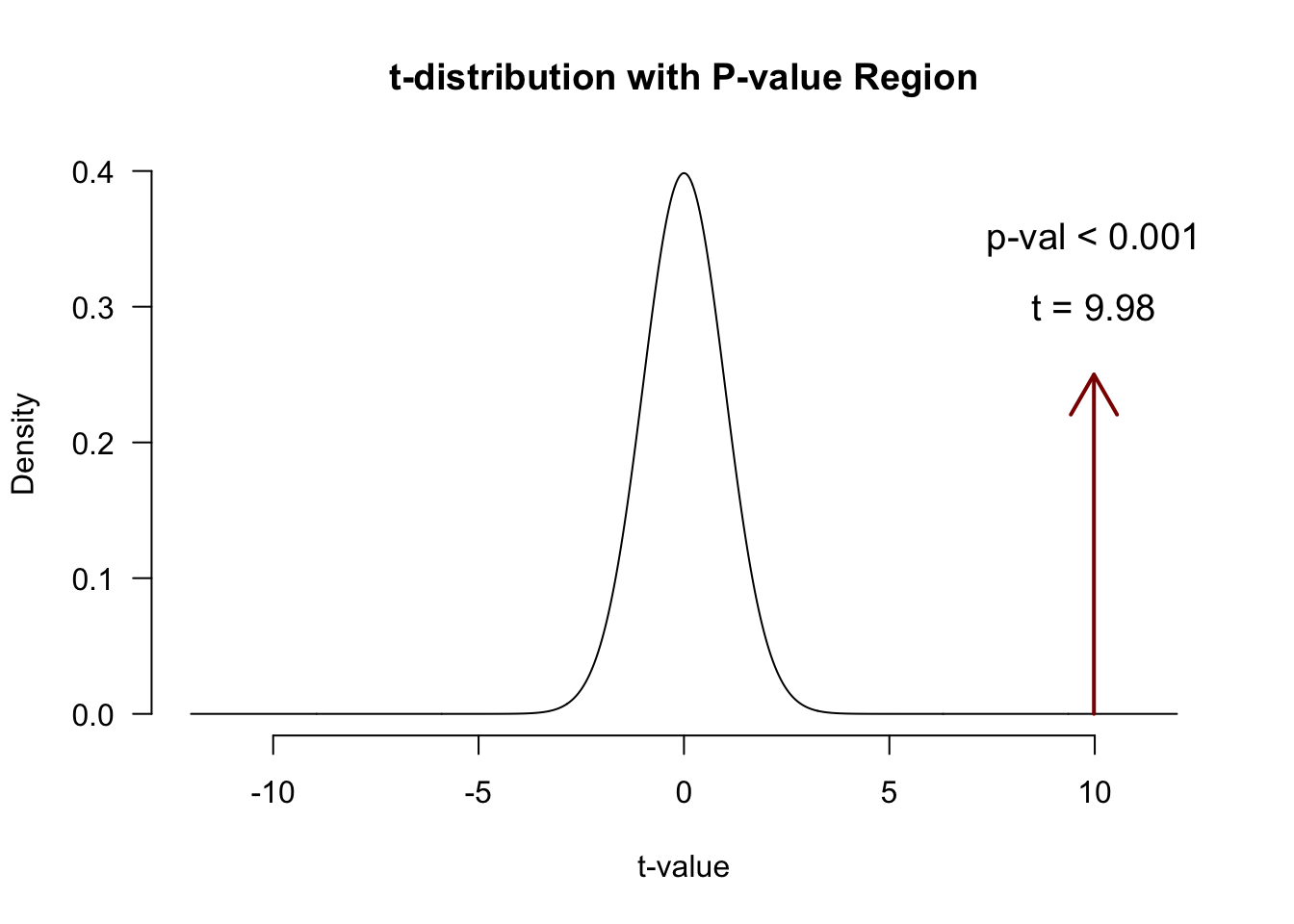

P-values of \(b_1\)

So how many @!&#$ ways do we have for assessing an association?!

# the correlation between x and y, standardized (between -1, 1)
cor(sales, adverts)
[1] 0.5785264
# the covariance between x and y, unstandardized
cov(sales, adverts)
[1] 226.7254
# regression coefficient in linear regression, standardized (not bounded)
# generalizes easily to settings with multiple predictors
b1 # how much does y-prediction increase, if we increase x by 1 unit?
[1] 9.613511
# t-statistic: standardized difference between b1 and 0
t.b1 # used for testing the null hypothesis that b1 = 0
[1] 9.980326
# The metrics below are more indicative of an overall model's performance

# the correlation between y and model prediction, standardized (between -1, 1)
cor(sales, prediction) # can be squared to get proportion explained variance
[1] 0.5785264
